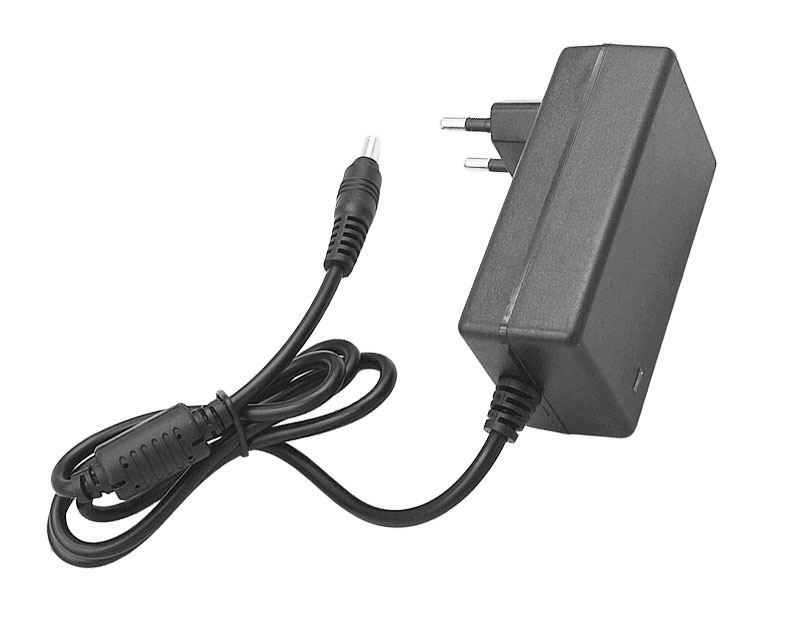

Power Adapter: ZDPS-1202
Multi-Angle View
Power Adapter: ZDPS-1201
Power Adapter: ZDPS-2402
Multi-Angle View
Multi-Angle View

Power Adapter

MODELZDPS-1202/1201/2402/24015

Facebook Twitter InLink instagram Youtube Skype
  • Output: DC12V, 2A

  • Input: AC110~220V, 50/60Hz

  • Accurate and stable output voltage

  • Output over-voltage, over-current and short-circuit protection

  • Low output  ripple and noise

  • Average no trouble working>20,000 hours

Wall mount cctv power supply:   DC12V /2A, it's widely use for CCTV camera, Security Systems, Set-top boxes, Health care electronics, LED lighting products and so on.


- Optional Model:

ZDPS-1201 (DC12V, 1A)

ZDPS-2402 (DC24V, 2A)

ZDPS-24015 (DC24V, 1.5A)

- Input: 100 - 240 V AC, 50/60Hz
- Output Voltage: 12 V DC, 2A
- Max Wattage: 24W
- Power cord length: 0.9m
- Dimensions: 3.86inch/98mm x 1.77inch/45mm x 2.36inch/60mm
- Diameter of connector: interior 2.1mm ; exterior: 5.5mm

ModelZDPS-1202
Input100-240VAC,   50/60Hz
Output interface5.5   X 2.1mm
OutputDC12V/2A
Voltage linear regulation rate±10%
Main output ripple & noise(mVp-p):<1%
ProtectionOCP,OVP,OTP,Short
Operating Temperature/HumidityTemp:-10~40ºC,Humidity:20%-90RH
EMC & SafetyCompliance   to GB4943 Class B & EN55022
Frequency50-60Hz
No-load Power Consumption0.3W   max


Package Contents:

  • Standard Exporting Packing Box
