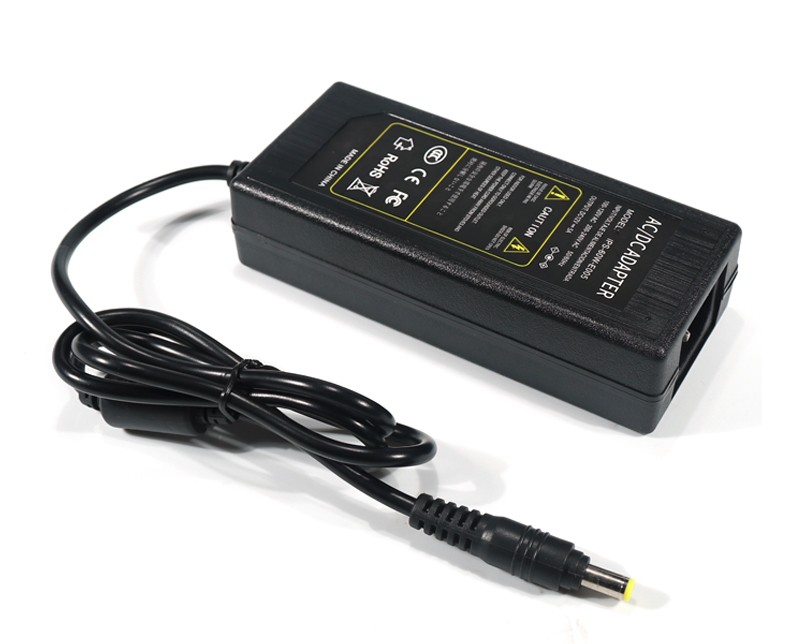

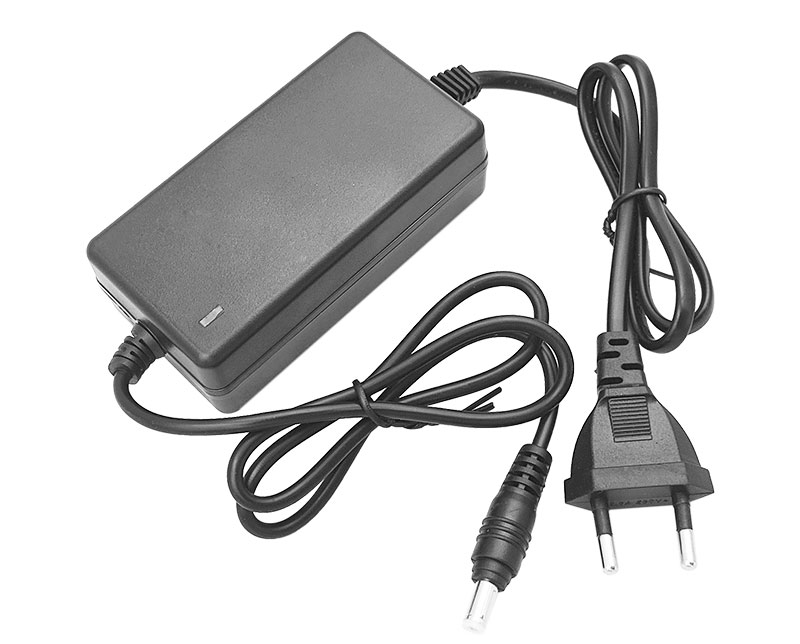

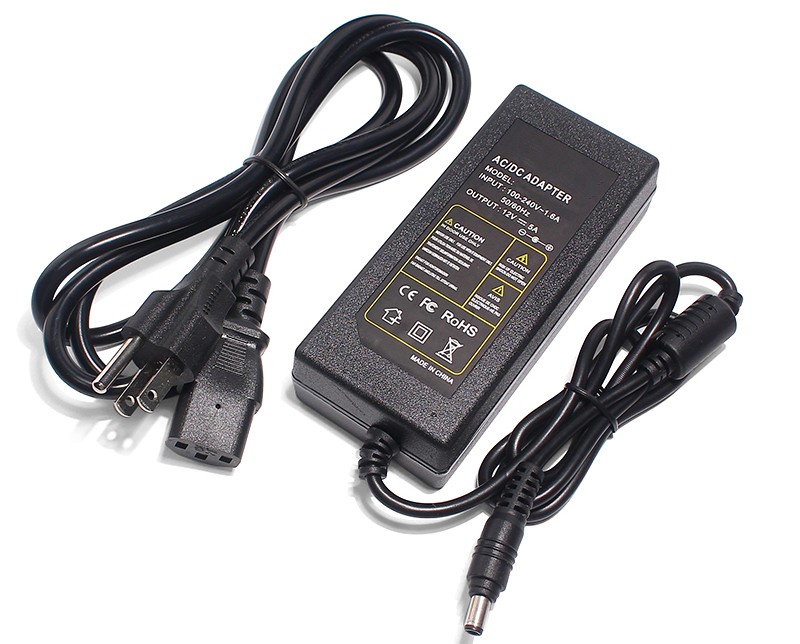

Desktop Integrated power adapter: ZDPS-1205D
Multi-Angle View

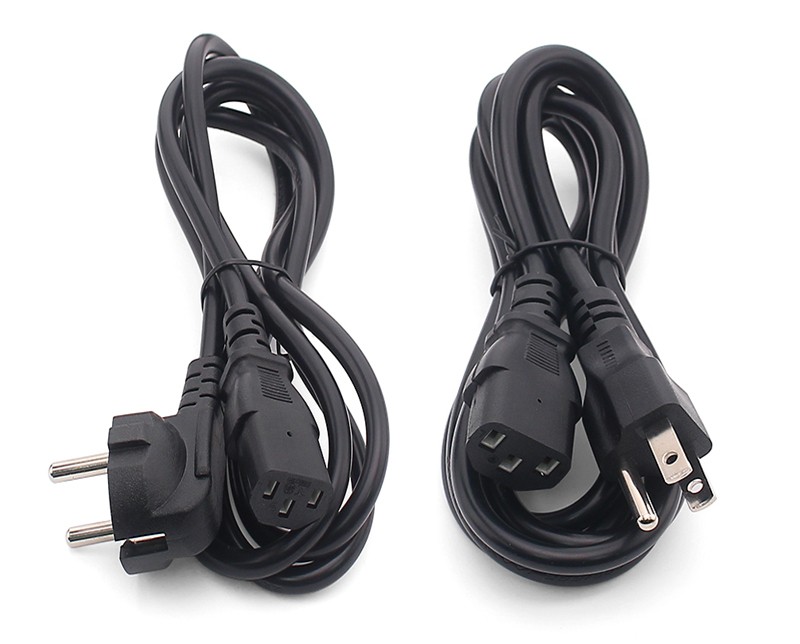

US/EU/UK-Type AC power Cable

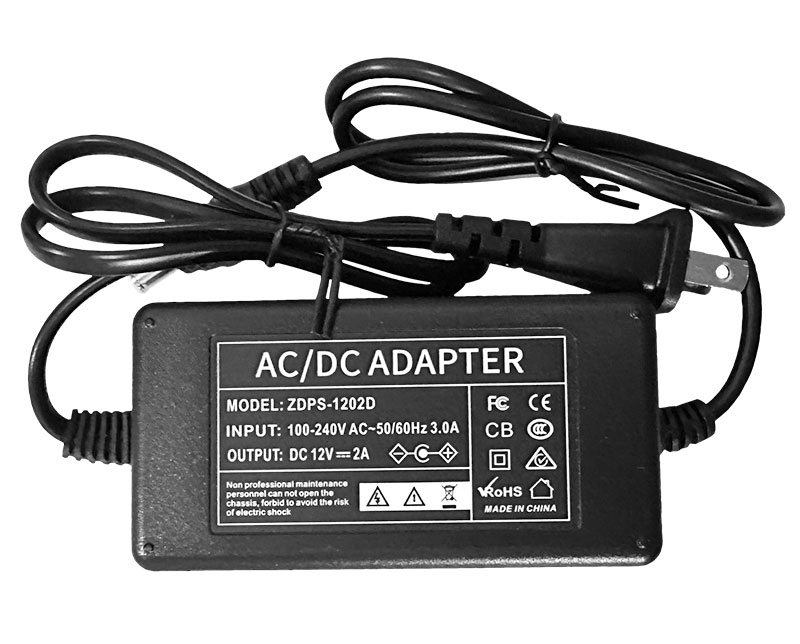

Desktop Integrated power adapter: ZDPS-1202D
Multi-Angle View

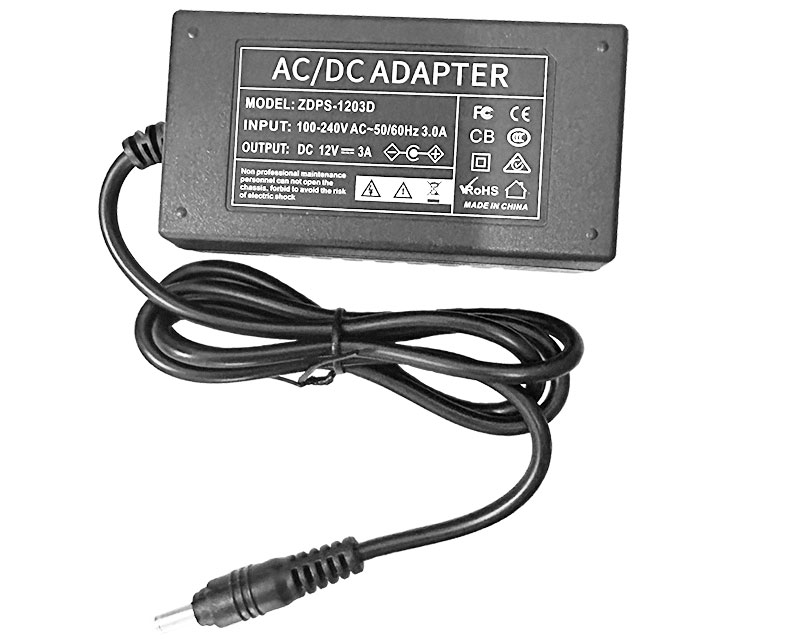

Desktop Integrated power adapter: ZDPS-1203D
Multi-Angle View

Desktop Integrated power adapter

MODELZDPS-1205D/1203D/1202D

Facebook Twitter InLink instagram Youtube Skype
  • Built-in EMI filter

  • 100% Load burn-in test

  • Wide range of input voltage

  • Accurate and stable output voltage

  • Output over-voltage, over-current and short-circuit protection

  • Average no trouble working>20,000 hours

Desktop Integrated power adapter: It's widely usefor laptop, moniter, Toys, DVD/ MP3/MP4, IP camera, Antenna Communications products, Wireless AP, Wireless Router, IP phones, Security Systems, Set-top boxes, Health care electronics, LED lighting products and so on.


- Optional Model:

* ZDPS-1203D (DC12V, 3A)

* ZDPS-1202D (DC12V, 2A)

- Universal Input: 100-240V AC 50/60Hz
- Safety: UL/CUL/TUV/GS/CE/CCC compliance
- With PFC or without PFC optional
- High efficiency & low power consumption
- Short Circuit Protection
- Over Current Protection
- Over Voltage Protection
- Light Weight & Compact
- At 25 degree condition, maximum working load, running 50000 hours without fault.

ModelZDPS-1205D
Input100-240VAC,   50/60Hz
Input CableVaries,   up to clent's request: EU, US, UK..etc
OutputDC12V/5A
Voltage linear regulation rate±5%
Main output ripple & noise≤200mV
Stand By Power Consumption≤0.21W
ProtectionOCP,OVP,OTP,Short
Operating Temperature/HumidityTemp:-10~40ºC,Humidity:20%-90RH
EMC & SafetyCompliance   to GB4943 Class B & EN55022
Frequency50-60Hz
No-load Power Consumption0.3W   max


Package Contents:

  • Standard Exporting Packing Box
