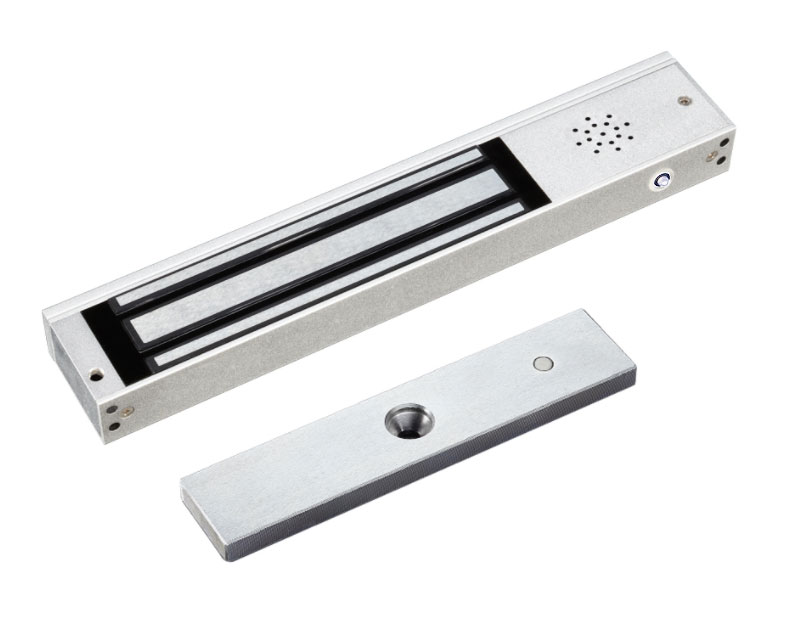

Single Door Electromagnetic lock -With Buzzer:   280kg(600Lbs), DC12V, or DC24, With Buzzer, when set up 0~15S as door close time, if the door doesn't close after 15 secs, it will alarm till the door close. it's widely used for all kind of wooden and metal door, LED indicates the door status.

- Optional Lock Model No.:

- ZDL-350B: 350kgs(800Lbs) with buzzer
- ZDL-500B: 500kgs(1200Lbs) with buzzer

-  With Buzzer, when set up 0~15S as door close time, if the door doesn't close after 15 secs

- Input voltage：DC12V, or DC24 (can be customized)

- Holding Force: 280kg(600Lbs)

- With door state detection signal output function, for applications that require real-time monitoring of entrance door switch state occasions;  NO /NC /COM, NO output when locking and unlocking the NC output
- With adjustable delay locked 0-20 seconds
- Bi-color LED to achieve opening and closing status display
- Fail-safe type (Power to lock): Power-on to lock, Power-off to open).
- Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
- Finishes for Shell: Anodized aluninum
- Finishes for Magnetic: Zinc
- Finishes for Armature: Zinc

• Voltage: 12/24VDC+10%

• Power consumption: 12V/450mA; 24V/230mA(customizable)

• Signal output:NO /NC /COM, NO output when locking and unlocking the NC output

• Red indicates the door is unlock,Green indicates the door is lock

• Delay time: 0~15 seconds adjustable

• Surface Temp: ≤+20°C

• Operating Temp: 10~+55°C(14-131F)

• Suitable Humidity:  0~90%

• Dimension：250×48×27mm(Body); 183×38×12mm(Magnet)
  Packing size: 26.5*6.5*6cm, Weight: 1.9Kgs

Package Contents:

• Standard Exporting Packing Box
