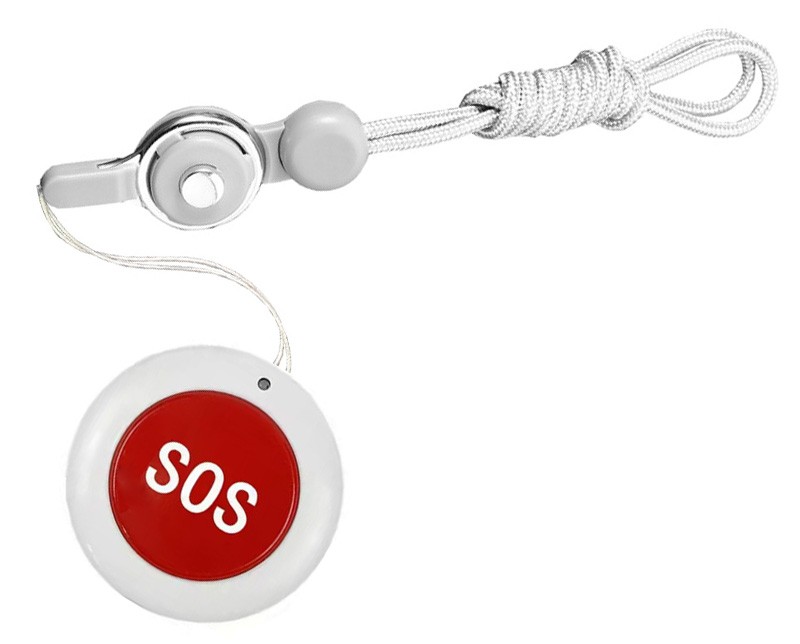

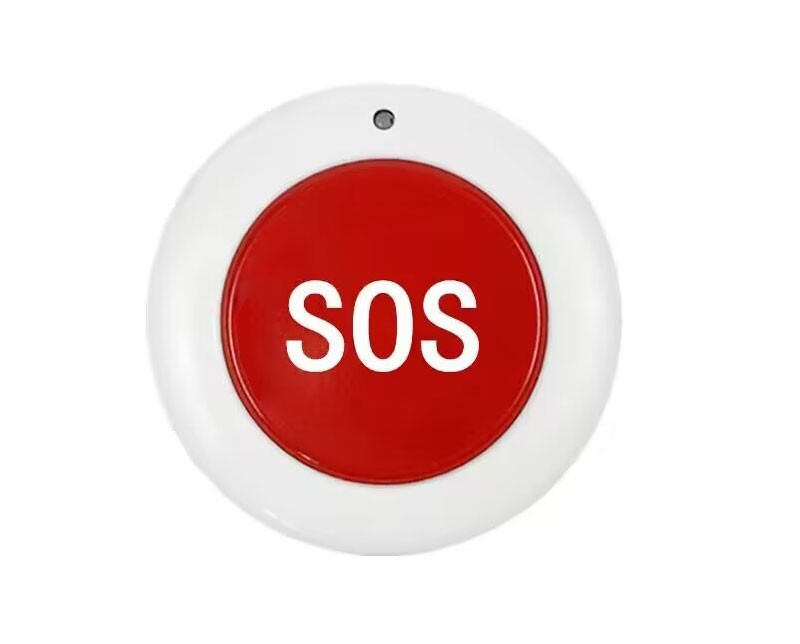

Portable Necklace Type SOS Button: ZDEB-109
Multi-Angle View

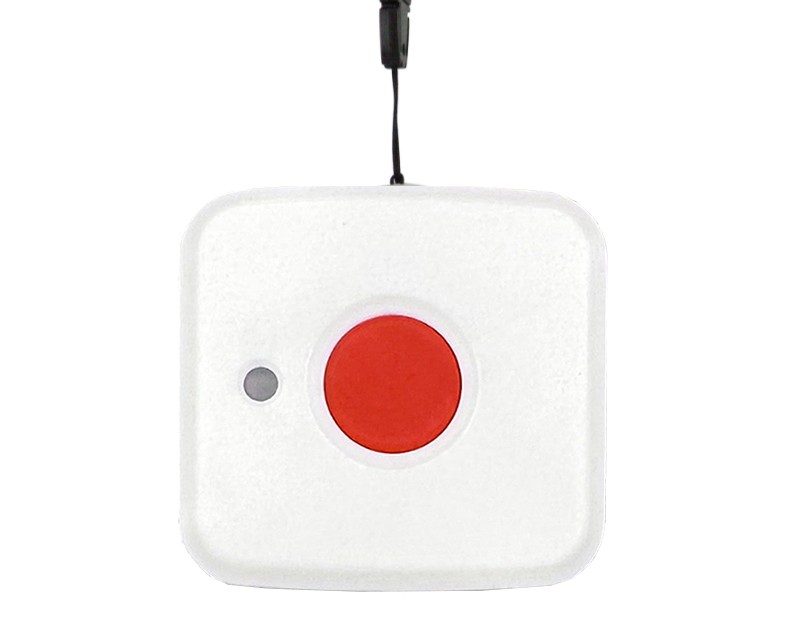

Wireless Portable Necklace Emergency Button: ZDEB-108

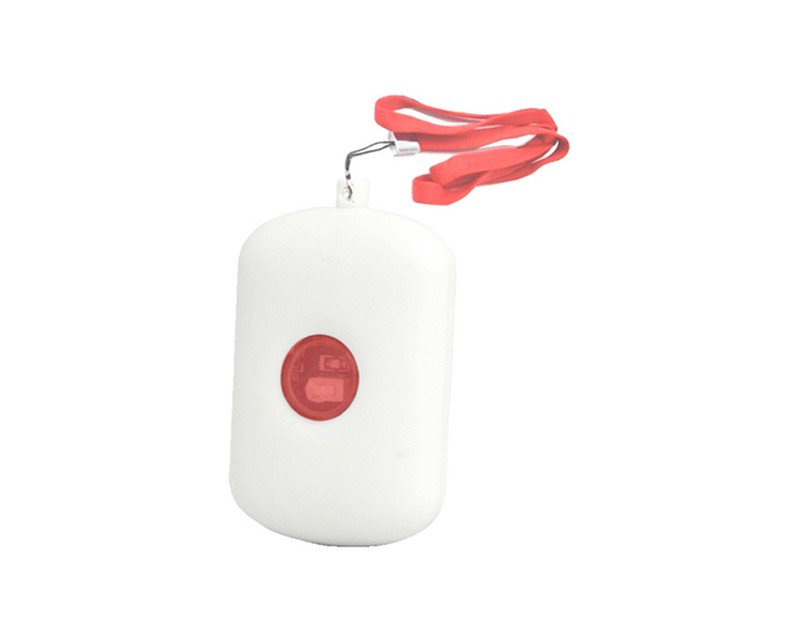

Wireless Portable Necklace Emergency Button: ZDEB-105

Wireless Necklace Emergency Panic Button -Portable Type

MODELZDEB-109

Facebook Twitter InLink instagram Youtube Skype
  • Button type, Portable Necklace type

  • Compact appearance

  • Anti false alarm design

  • Zero standby power consumption

  • Low battery detection

  • For emergency assistance system

Wireless SOS/Emergency Panic Button -Portable Necklace Type:  Compact, light, Anti-lost & attractively designed. Once the emergency incident occurs, press the panic button to transmit the signal to the host by the wireless way so as to achieve the effect of emergency call.


This product is suitable for all the places where the security protection is needed, such as residential areas, companies, shopping malls, hospitals, banks, guard post etc.  Or It can also be widely used for Panic alarm for elderly, Telecare Systems, Emergency Panic assistance systems, Nurse call systems, Personal Alarms, also called Panic Buttons, Emergency Calls, etc


- Wireless Emergency Button: ZDEB-108 (Portable Necklace Type with Waterrpoof design)

- Wireless Emergency Button: ZDEB-105 (Portable Necklace Type)


Wireless Necklace Emergency Panic Button -Portable Type(图1)


- Panic button type
- Compact appearance
- Anti false alarm design
- Zero standby power consumption
- Low battery detection
- Long battery life: up to 1 years
- Anti RFI 20V/m-1GHz
- SMT process

  • Operating voltage 3V 1*CR2032 button cell
    Standby current 1uA;  Alarm current 20mA

  • Alarm indicator red LED

  • Low-battery indicator rapid flash of red LED

  • Coding mode MCU coding with 2262 1527 optional

  • Transmitting frequency: 433M

  • Transmitting distance: 50m-100m(open area)

  • Alarm type: button type

  • Operating temp.:-10℃~+50℃

  • Ambient humidity: <80%RH

  • Dimension 50*15mm; Weight: 0.05kg



Package Contents:

  • Standard Exporting Packing Box
