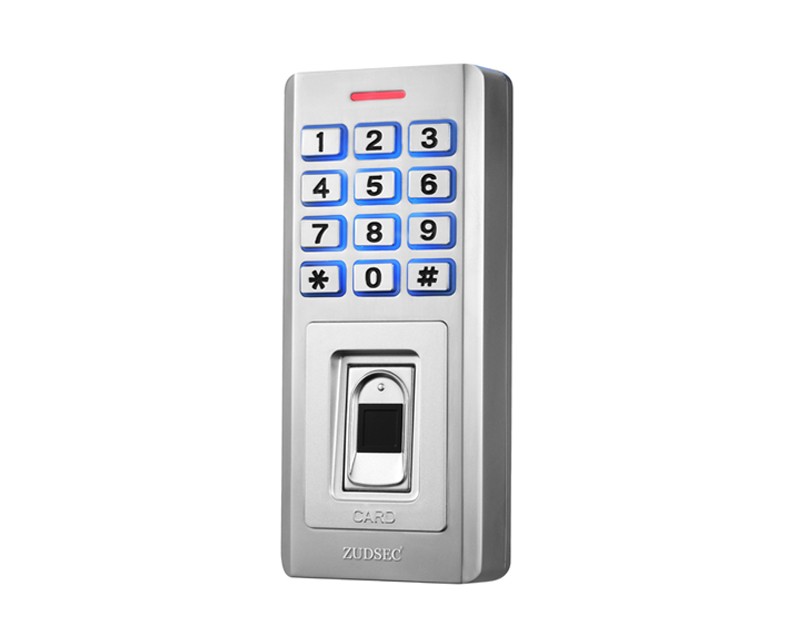

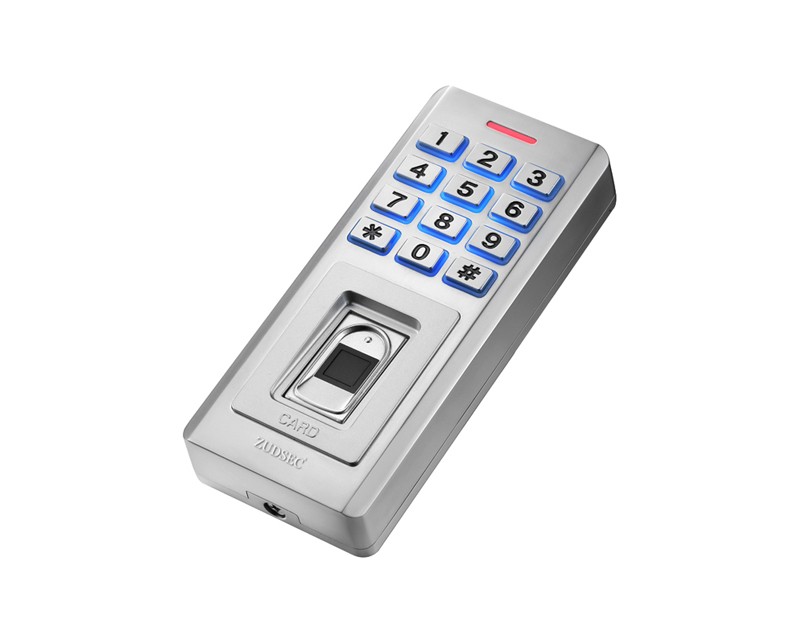

Fingerprint Access Control: ZDAC-F3K

Keypad Fingerprint Access Control

MODELZDAC-F3K

Facebook Twitter InLink instagram Youtube Skype

- Supporting fingerprint, ID card and password
- 300 Fingerprint users, 10000 RFID users & PIN
- Wiegand output, wiegand input
- Wiegand interface: wiegand 26
- Remote control / Master card for programming
- Metal shell, anti-vandal design.

Keypad Fingerprint Access Control: Metal case, anti-vandal,Multi-function standalone access controller and reader, WG26 output/Input Capacity: 10,000 cards/300fingerprints, card, fingerprint 2 kinds of openning door method. The high security and more powerful feature make it an ideal choice for door access.  By Master card for programming, it is so user friendly that anyone can use it.


User capacity 10000, including 300 fingerprint users and 10000 RFID card users. With the flexible user capacity, it is suitable to be installed from small house such as personal rooms, shops, office to public place such as large factories, companies.



Keypad Fingerprint Access Control(图1)

- Supporting fingerprint, ID card and password
- 300 Fingerprint users, 10000 RFID users & PIN
- Wiegand output, wiegand input
- Besides standalone, it can connect to other controller as the salve reader
- Wiegand interface: wiegand 26
- Remote control / Master card for programming
- Metal shell, anti-vandal design.
- Anti-magnetic & lock output current short protect;
- Support connecting any card readers with wiegand interface, such as HID, Mifare, EM
- Full of 2160 users, searching speed <0.1 S.
- DC input: 12DC,100mA



Model

ZDAC-F3K

 Memory capacit 100000
 Fingerprint capacity 300
 PIN /RFID users10000
 Supply Voltage 12VDC±10%
 Sleeping Current <20mA
 Stay Current <90mA
 Temperature -15ºC-60ºC
 Humidity 20%RH-95%RH
 Lock output load capacity 30A
 Alarm output load capacity 20A
 Resolution 450 DPI
 Fingerprint input time <1S
 Identification time <1S
 FAR <0.001%
 FRR <0.1%
 Dimensions 139L*70W*22H(mm)
 N/W 500g
 G/W 700g


Package Contents:

  • Standard Exporting Packing Box
