Facial & Fingerprint Access Control: ZDAC-T1F

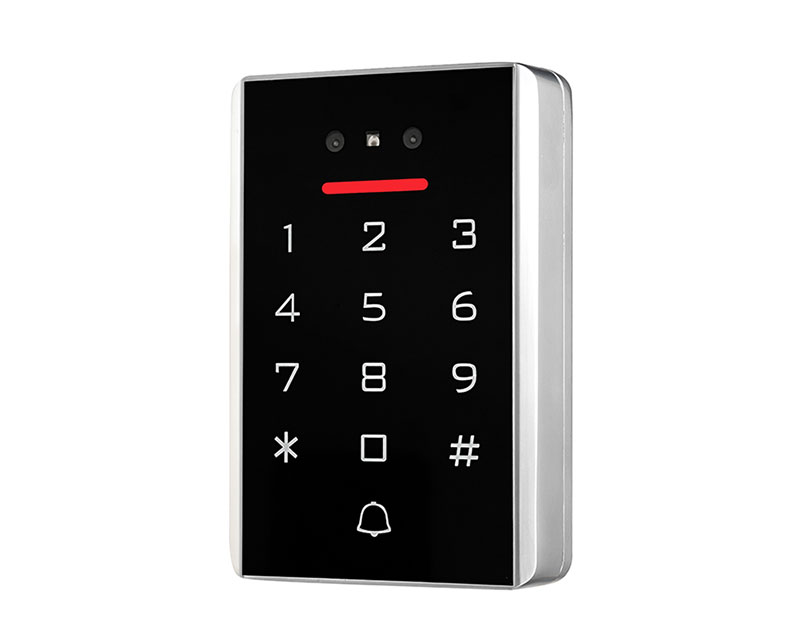

Fingerprint Access Control:  ZDAC-T5F
Multi-Angle View

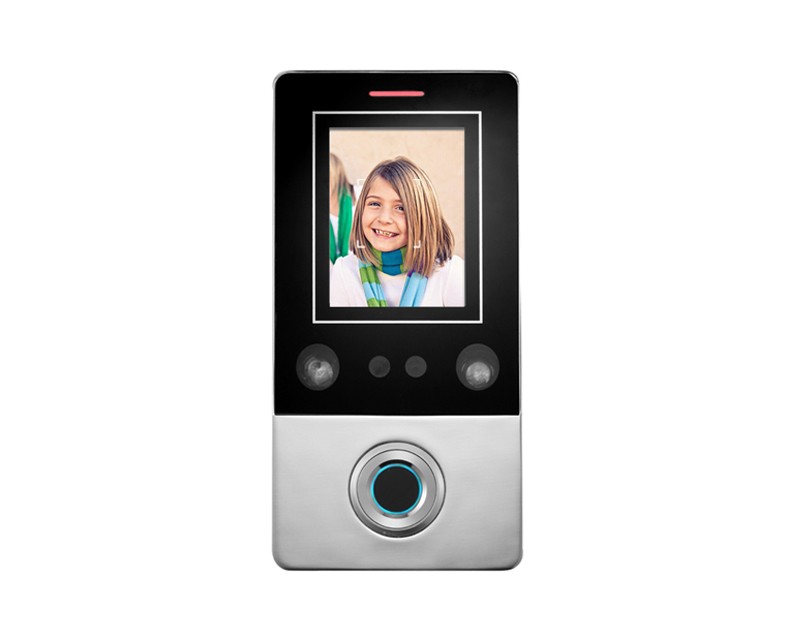

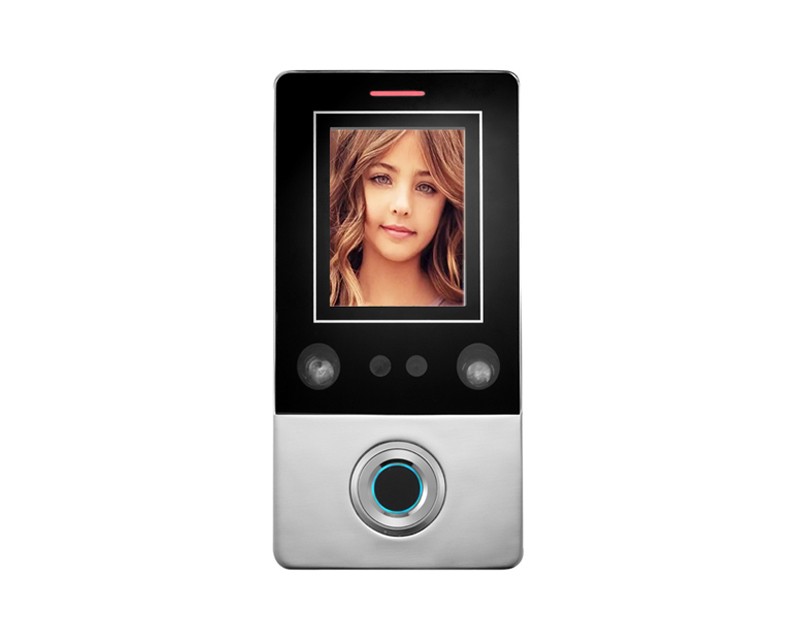

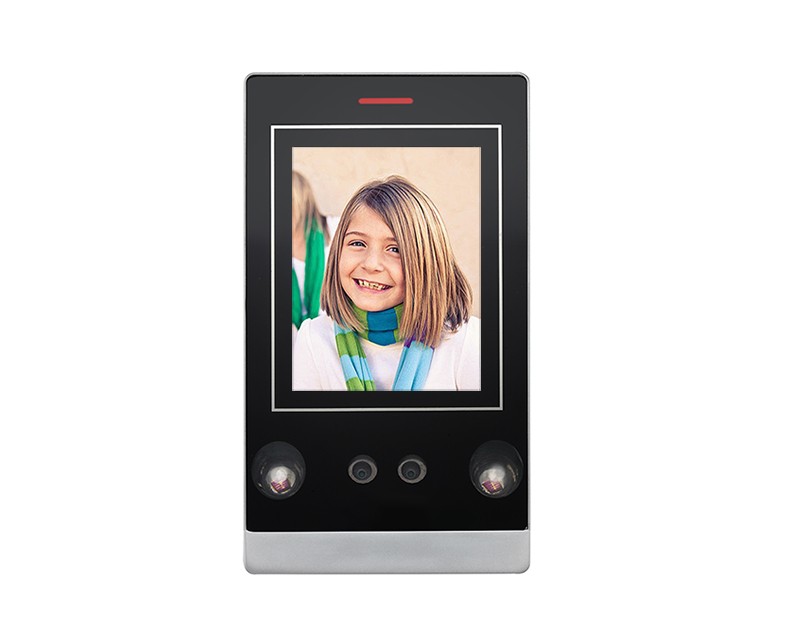

Facial & Fingerprint Access Control

MODELZDAC-T1F

Facebook Twitter InLink instagram Youtube Skype
  • Support Facial Recognition, Fingerprint, support RFID cards

  • 1000 Facial users, 600 Fingerprint users, 10000 RFID users

  •  Facial recognition distance: 50cm~1m

  • Wiegand output, wiegand input

  • Remote control / Master card for programming

  • Metal shell, anti-vandal design.

Face Recognition Fingerprint Access Control: Metal case, anti-vandal,Multi-function standalone access controller and reader, WG26 output/Input Capacity: 10,000 cards/300fingerprints, Face, card, fingerprint 3 kinds of openning door method. The high security and more powerful feature make it an ideal choice for door access.  By Master card for programming, it is so user friendly that anyone can use it.

User capacity 10000, including 1000 facial users, 600 fingerprint users and 10000 RFID card users. With the flexible user capacity, it is suitable to be installed in office, shops,residential, villa, and banks etc


Optinal Model: ZDAC-T5F (Fingerprint access control without Facial recognition)


Facial & Fingerprint Access Control(图1)



- Support Facial Recognition, Fingerprint, support RFID cards
- 1000 Facial users, 600 Fingerprint users, 10000 RFID users
- Wiegand output, wiegand input
- Besides standalone, it can connect to other controller as the salve reader
-  Wiegand interface: wiegand 26
- Remote control / Master card for programming
- Metal shell, anti-vandal design.
- Anti-magnetic & lock output current short protect;
- Support connecting any card readers with wiegand interface, such as HID, Mifare, EM
- Full of 2160 users, searching speed <0.1 S.
- DC input: 12DC,100mA

ModelZDAC-T1F
 Face capacit 1000
 Fingerprint capacity 600
 Mifare or EM Card users 10000
 Supply Voltage 12VDC±10%
 Standby Current <180mA
 Operating Current <300mA
 Temperature -15ºC-60ºC
 Humidity 20%RH-95%RH
 Output protocol Can operated as a reader
 Access mode Facial recognition, Fingerprint, Card, Card+Fingerpint, Card + Face
 Admin Card admin card, admin fingerprint(add/delete)
 Facial recognition distance 50cm~1m


Package Contents:

  • Standard Exporting Packing Box
