Touch Keypad, WiFi & Waterproof optional
Supporting fingerprint, card and password
300 Fingerprint users, 10000 RFID users & PIN
Wiegand output, wiegand input
Wiegand interface: wiegand 26
Metal shell, anti-vandal design.

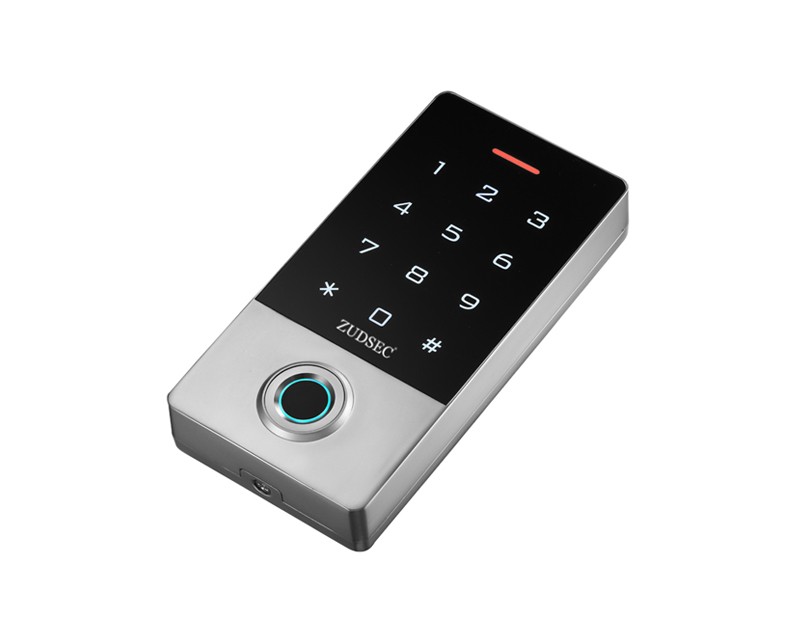

Touch Keypad Fingerprint Access Control: Touch Keypad, Metal case, Anti-vandal,Multi-function standalone access controller and reader, WG26 output/Input Capacity: 10,000 cards/300fingerprints, card, fingerprint 2 kinds of openning door method. The high security and more powerful feature make it an ideal choice for door access. By Master card for programming, it is so user friendly that anyone can use it.
User capacity 10000, including 300 fingerprint users and 10000 RFID card users. With the flexible user capacity, it is suitable to be installed from small house such as personal rooms, shops, office to public place such as large factories, companies.
-Optional model:
* ZDAC-T2F (Normal type)
* ZDAC-T2FW (IP68 Waterproof type)
* ZDAC-T2F-WiFi (WiFi type)
* ZDAC-T2FW-WiFi (WiFi + IP68 Waterproof type)
- Touch Keypad, Supporting fingerprint, ID card and
password
- 300 Fingerprint users, 10000 RFID users & PIN
- Wiegand
output, wiegand input
- Besides standalone, it can connect to other
controller as the salve reader
- Wiegand interface: wiegand 26
- Remote
control / Master card for programming
- Metal shell, anti-vandal design.
-
Anti-magnetic & lock output current short protect;
- Support connecting
any card readers with wiegand interface, such as HID, 13.56MHz Mifare Card, or
125KHz EM card.
- Full of 2160 users, searching speed <0.1 S.
- DC
input: 12DC,100mA
Model | ZDAC-T2F |
Memory capacit | 100000 |
Fingerprint capacity | 300 |
PIN /RFID users | 10000 |
Supply Voltage | 12VDC±10% |
Sleeping Current | <20mA |
Stay Current | <90mA |
Temperature | -15ºC-60ºC |
Humidity | 20%RH-95%RH |
Lock output load capacity | 30A |
Alarm output load capacity | 20A |
Resolution | 450 DPI |
Fingerprint input time | <1S |
Identification time | <1S |
FAR | <0.001% |
FRR | <0.1% |
Dimensions | 139L*70W*22H(mm) |
N/W | 500g |
G/W | 700g |
Package Contents:
Standard Exporting Packing Box
