Wired Magnetic Door Sensor: ZDD-423M
Multi-Angle View
Multi-Angle View
Multi-Angle View
Multi-Angle View

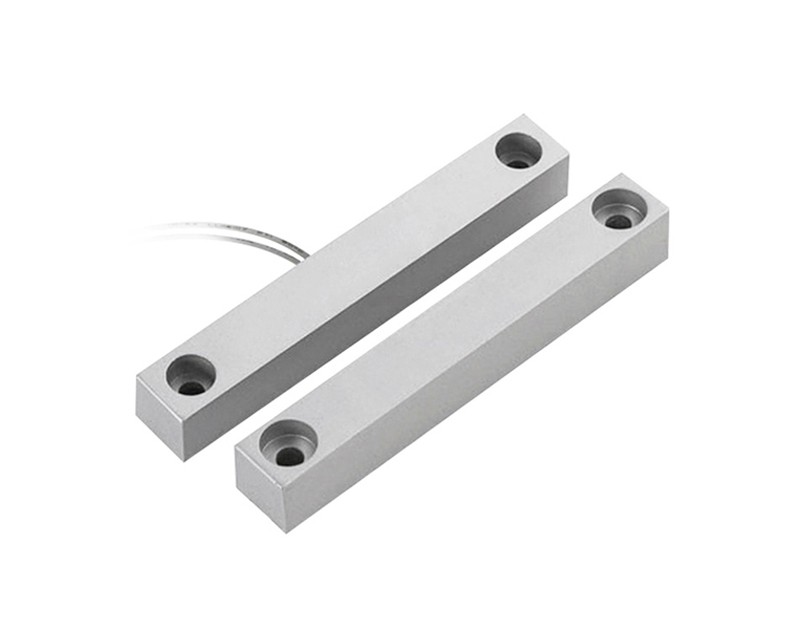

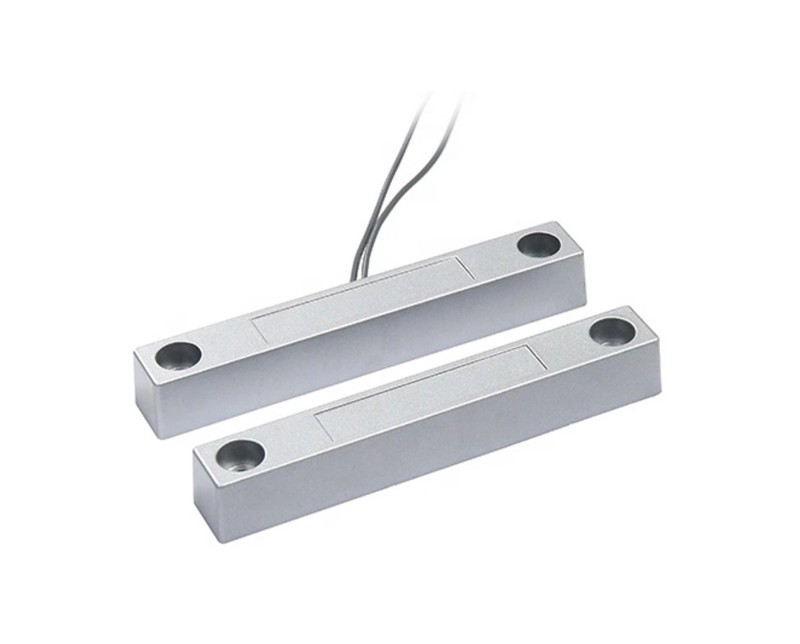

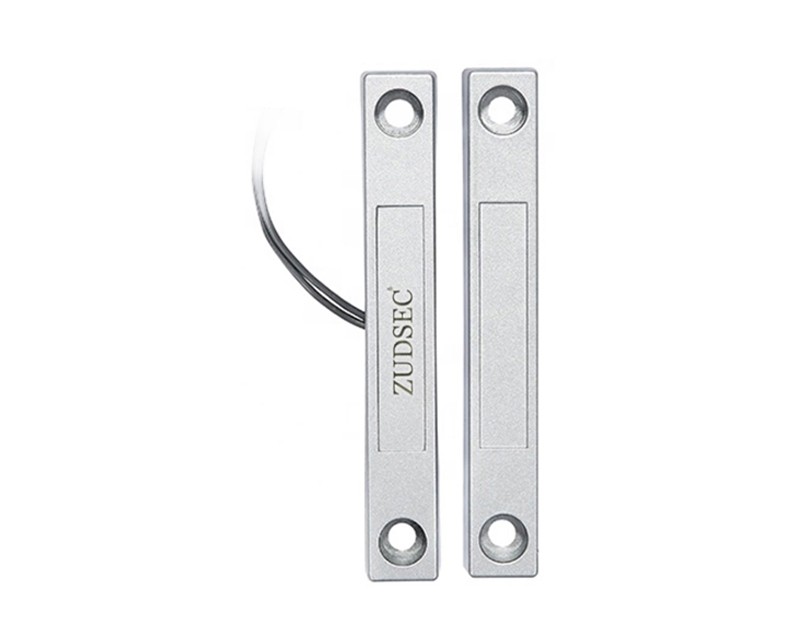

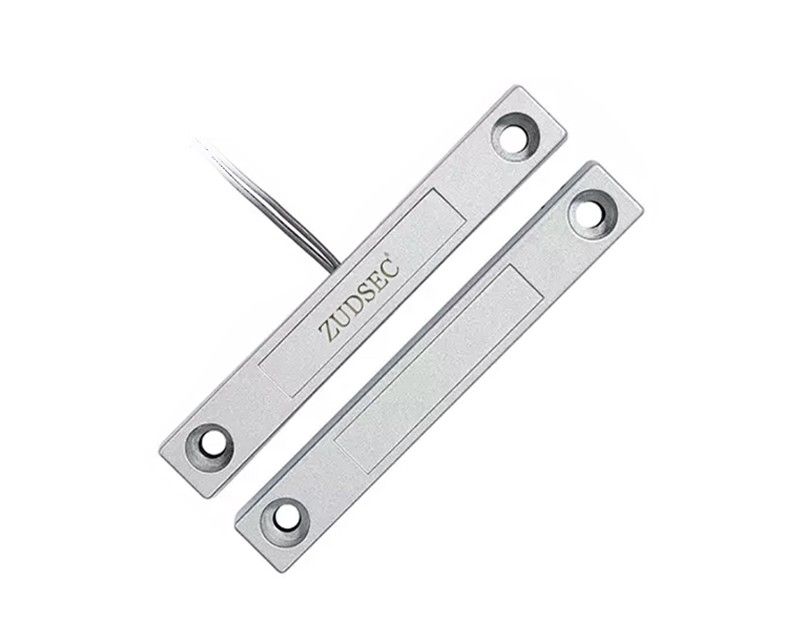

Wired Magnetic Door Sensor -Surface Mount

MODELZDD-423M

Facebook Twitter InLink instagram Youtube Skype
  • Detecting door gap by opening

  • Connecting mode: N.C/ Wire

  • Operating distance(Gap): 40-50mm

  • Cable length: 350mm

  • Easy installation and strong flexibility.

Wired Magnetic Door Sensor -Surface Mount: ABS (Plastic Design), Ideal for metal door/ window, for commercial applications and where a wide gap is needed.

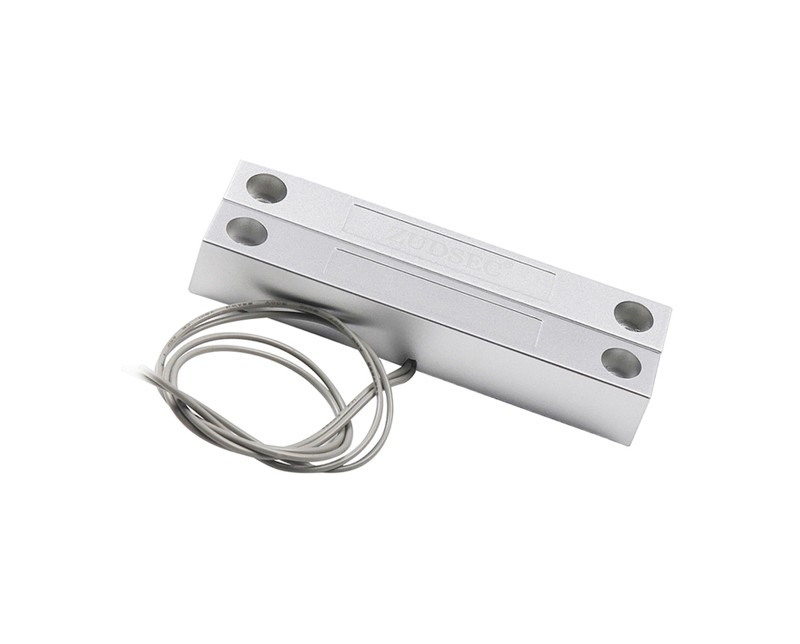

- Optional model:  ZDD-423MM (ZINC-Alloy material)

-

- Detecting door gap by opening
- Connecting mode: N.C. (N.O.& changeover  available)
- Installation: install outwardly

  • Operating distance(Gap): 40~50mm

  • Housing:  ABS fireproof Casing Material (ZINC-Alloy material is optional

  • Color: grey

  • Installation: install outwardly

  • Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ): 0.5A/100V/10W/200mΩ

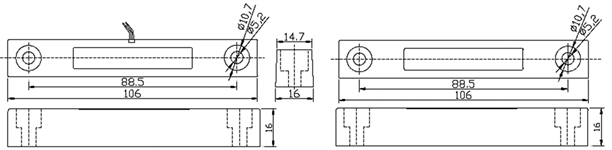

  • Product Size: L106*W16*H16mm, Weight: 0.18kg/pc(Plastic)

  • Package:
    Inner packing:  5set/bag,
    Outer packing:  50sets/carton
    Gross Weight:  12Kgs/ctn


Wired Magnetic Door Sensor -Surface Mount(图1)

Package Contents:

  • Standard Exporting Packing Box
