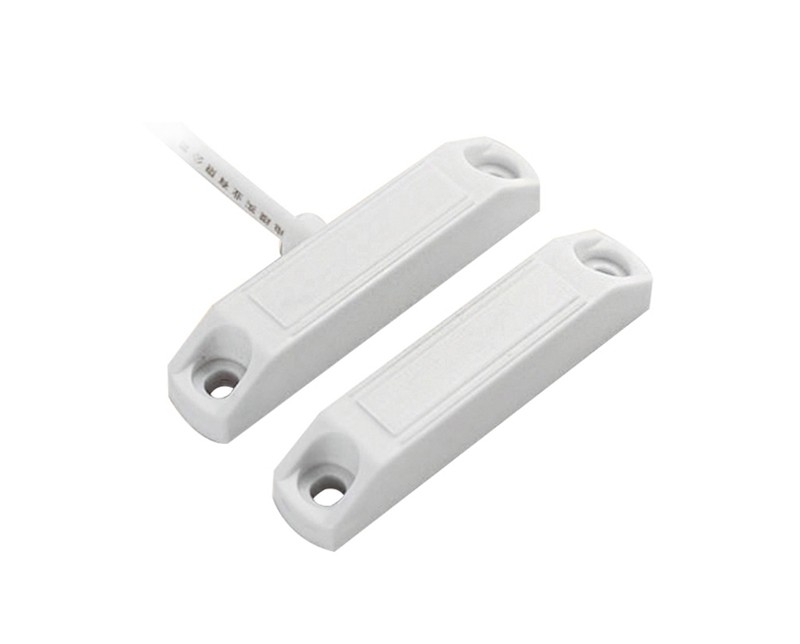

Wired Door Sensor: ZDD-426M

Wired Magnetic Contact -Surface Mount

MODELZDD-426M

Facebook Twitter InLink instagram Youtube Skype
  • Detecting door gap by opening

  • Operating distance(Gap): 20~30mm

  • Connecting mode: N.C / Wire (N.O.& changeover  available)

  • Color: White/Brown

  • Cable length: 350mm

  • Installation: install outwardly

Wired Magnetic Contact - Surface Mount: Detecting door gap by opening, Be used to detect door, window, or drawer if it is opened or moved. It is widely used for monitoring and security system, with high reliability, small size, easy installation and operation and strong flexibility.

- Detecting door gap by opening
- Connecting mode: N.C. (N.O.& changeover  available)
- Installation: install outwardly

  • Operating distance(Gap): 20~30mm;

  • Housing:  ABS

  • Color: white

  • Connecting mode: N.C. (N.O.& changeover  available)

  • Cable length: 350mm

  • Installation: install outwardly

  • Package:

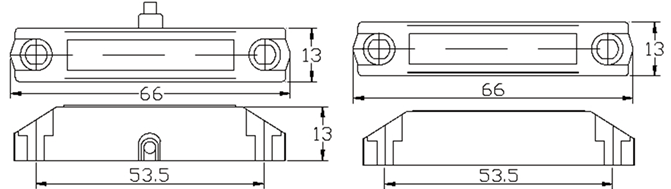

  • Product Size: 66*13*13mm
    Inner packing: 5sets / PE
    Outer packing: 300 sets / carton
    Gross Weight: 16.0KG


Wired Door Sensor - Surface Mount(图1)

Package Contents:

  • Standard Exporting Packing Box
