Multi-Function Wireless & Wired Compatible Alarm System: ZUDSEC's Security systems are much more than reliable and easy-to-use security alarms. The 8 Wired Zones +16 Wireless zones alarm panel of ZDAS-16CA-8 takes advanced microprocessor as its core technology, allows you to integrate a Multi-Functions, offers many new and exciting ways to keep you and your family safe. Remote control of home appliances is optional.

The innovative Integrated security alarm systems from ZUDSEC are designed to meet and exceed the needs and expectations of professionals. It's an idea wireless & Wired security solutions for any type of residential applications or commercial installation. like bank, hotes, homes, apartments, condos or townhouses. as well as all industrial security and protection system. Compatible with ADEMCO CONTACT ID.

Optional Model:
* ZDAS-16CA-16: 16 Wireless zones + 16 Wired Zones
* ZDAS-8CA:     8 wired zones
* ZDAS-16CA:  16 wired zones

- 8 Wired Zone + 16 Wireless Zone( 16 Wireless zones + 16 Wired is optional)
- Multi- programmable settings, such as alarm sounds, zone types, recording, monitoring, remote controlling, telephone number, phone line Check etc.
- Wired and wireless compatible function, can match with various  wired or wireless detectors, sensors and accessories.
- Learning/Study code between detector and control panel.
- 2 groups 6 bits user passwords, 1 group 6 bits setting passwords are both adaptable;
- 6 groups of phone number and 3 group alarm center phone number could be set. When the alarm activated,it could repeat dialing the numbers.
- 5 ARM modes: EXIT ARM, BOUNDARY ARM, single zone ARM, delay ARM and remote ARM.
- 5 DISARM modes: single zone DISARM, keypad password DISARM, long distance DISARM, remote setting DISARM, DISARM when connecting alarm.
- 5 zone modes: instant zone, delay zone, 24 hours zone, BOUNDARY zone and BY-PASS zone
- Monitor the voice of the scene; Exit & Entry delay
- Built-in voice module, 10~20seconds record, voice alarm function
- Support upmost 4 wired control keypad ,Long distance remote range, 150 meters in open air. Keypad multi-zone LED Display.
- Telephone line Check function, anti-cutoff, anti-lightning strike
- "Watch dog" function, to avoid system down.
- Backup DC 12V 7Ah Sealed lead-acid battery support work when AC power cut off. Can work 24H in case of no electricity supply
- Remote control of home appliances is optional
- With voice alarm mode for alarm receiving & Remote phone control. Can hear which zone is alarming while alarm is activated(Optional function).
- High speed digital communication, compatible ADEMCO CONTACT ID digital communication protocol；Send alarm signal to alarm center.

• Power supply: AC110V/220V+10%;  Output: AC16.5V,2A
  Spare power supply: DC 12V 7Ah Sealed lead-acid baterry

• Stand by consume current: ≤50mA ; Power: <1.5W

• Alarm output current: 400mA, 12V

• Output voltage: DC12V～15V

• Wireless receiver frequency: 315MHZ or 433MHZ

• Oscillation Resistance: 1.5MΩ /3.3MΩ /4.7MΩ optional

• Working temperature: -10 ～ 55°C

• Working Humidity: 40 ～ 70%

• Metal box size: 25.5×23.5×7CM; Keypad size: 16.5×11×3CM; Weight: 2.5kg/kit;
        * Metal box : 10 pcs/ctn, Carton Size: 29*43*53CM;
        * Keypad : 108 pcs/ctn, Carton Size: 29*43*53CM;

Package Contents:

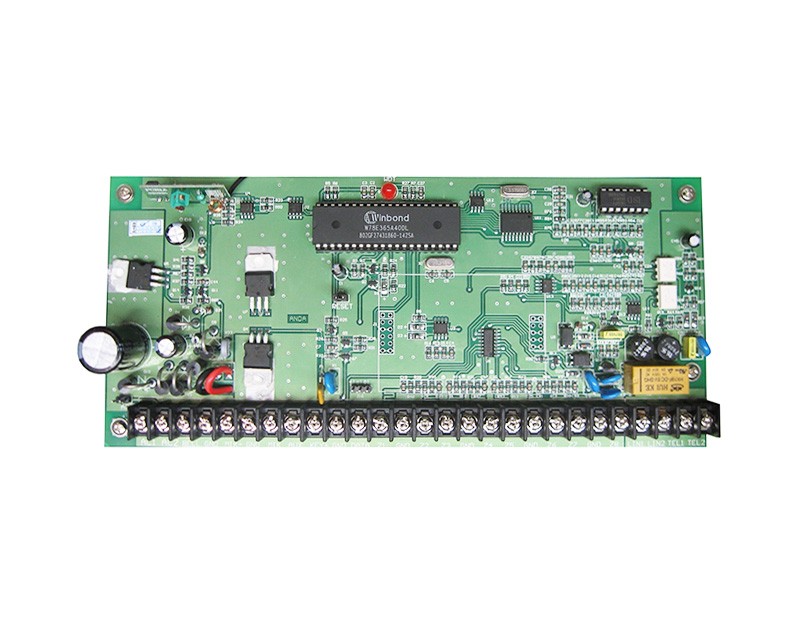

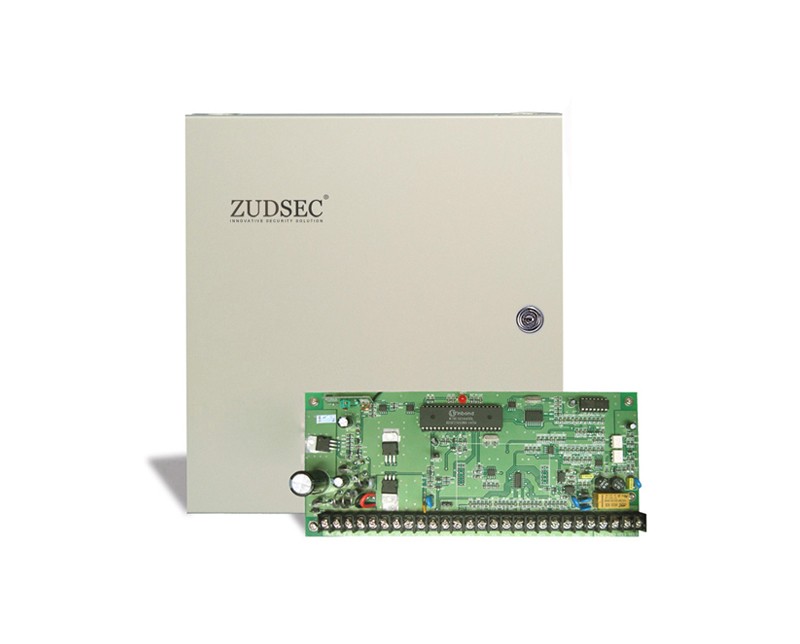

• Main Board / Metal box (transformer and main board inside)

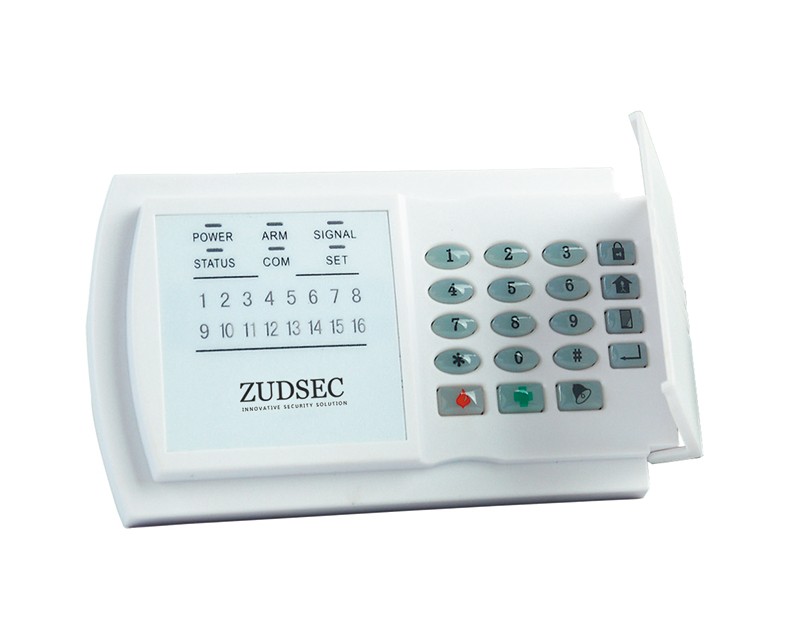

• Keypad (LED display)

• User Manual

• Phone Line

• Terminal Resistance

      Optional Accessories:  Wireless PIR Motion Detector, Wireless Door sensor, Wireless
      Emergency Button, Wired PIR Motion Detector, Wired Smoke Detector, Wired Gas Leakage
      Detector, Wired Photoelectric Beam Sensors, Wired Door Sensor,Wired External Siren,
      Sound monitor etc.
