Fingerprint Access Control & Time Attendance: ZDTA-F3

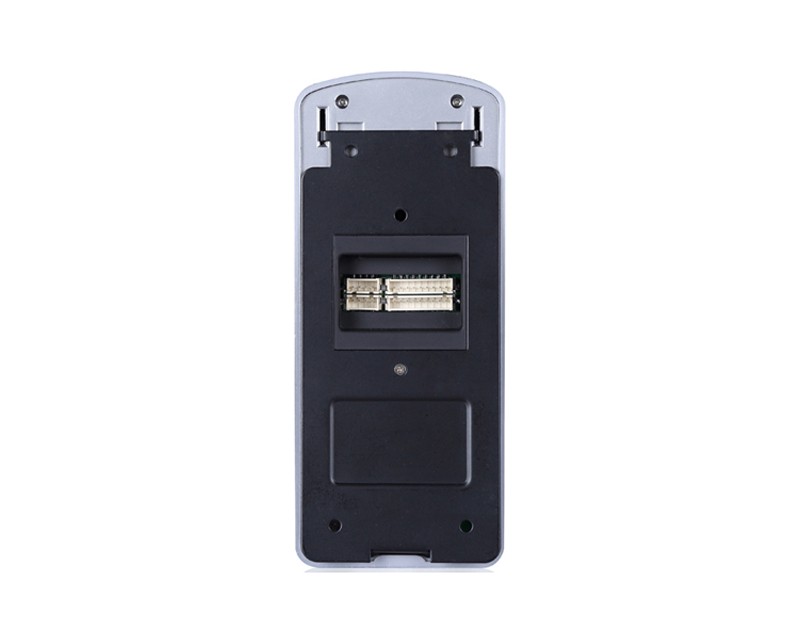

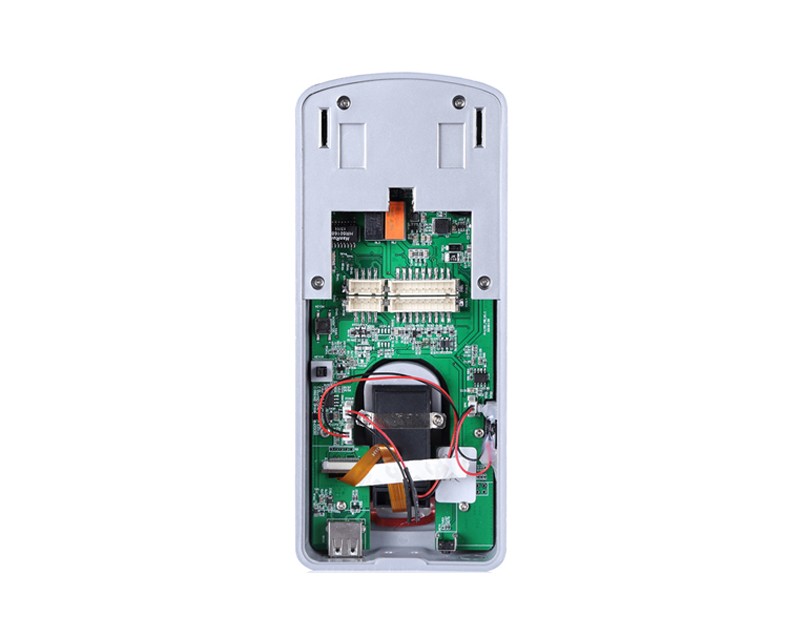

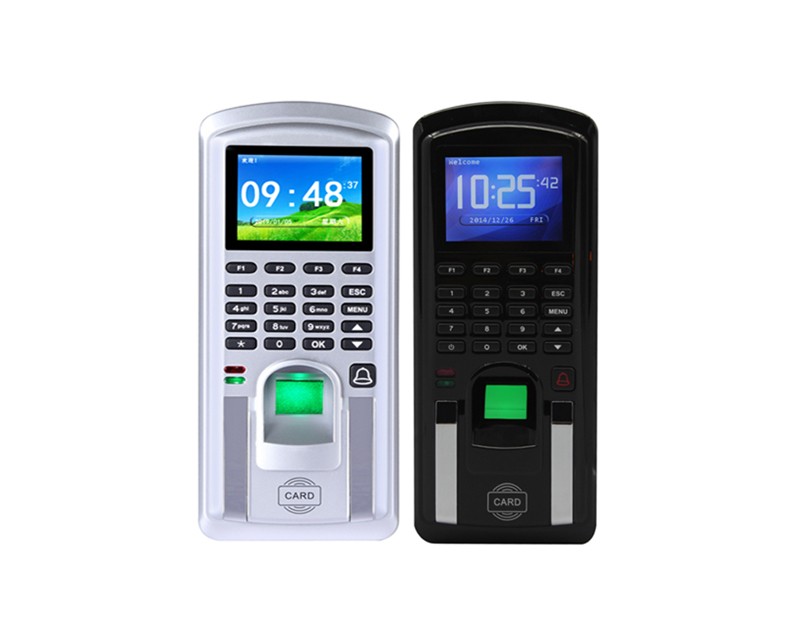

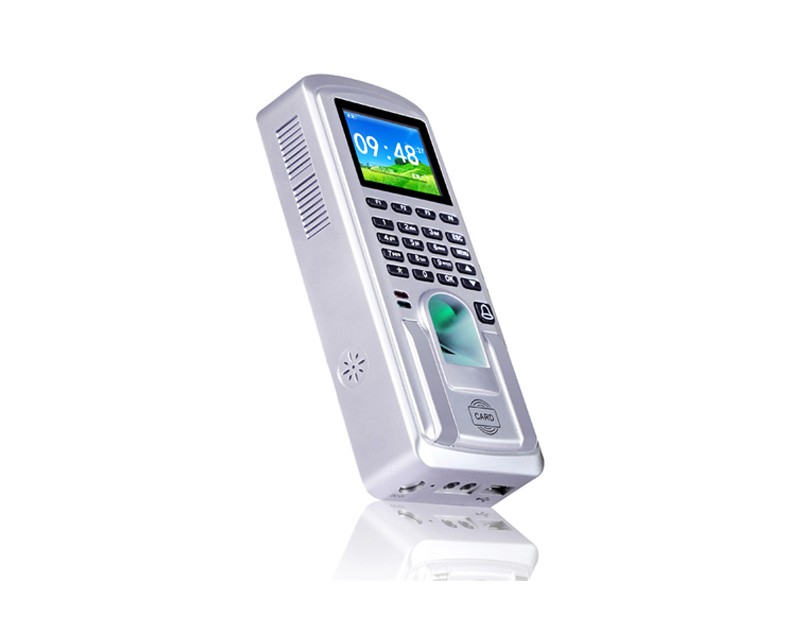

Multi-Angle View
Multi-Angle View
Multi-Angle View
Multi-Angle View

Fingerprint Access Control & Time Attendance

MODELZDTA-F3

Facebook Twitter InLink instagram Youtube Skype
  • Display:  2.4 inch TFT Screen

  • Fingerprint Sensor: Optical Sensor

  • Max User & Card Capacity:  5,000

  • Fingerprint Capacity: 5,000

  • Transaction Capacity: 100,000

  • Communication: TCP/IP, USB Memory Disk, optional for WIFI


TCP/IP Fingerprint Time Attendance & Access Control Terminal: ZDTA-F3 is a Biometric Fingerprint Time Attendance Terminal which combination the latest Biometric recognition technolog; With Access Control functon, Support USB, & TCP/IP communication; Adapts high image quality optical fingerprint sensor, can manage 5,000 fingerprints + 5000 RFID Card, Support fingerprint, card and password Identification.

- Anti-dismantlement alarm, threatens alarm, unlock illegally alarm,not block alarm are available.
- Fingerprint / Card / Password / Fingerprint+Card / Fingerprint+Password / Card+Password / Fingerprint+Card+Password identification modes are all available.
-It's with the most advanced fingerprint arithmetic in the world, automatically analyze the tiny difference of the latest fingerprints vs. the precious fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition, the identification time is less than 1 second.
- The device is built-in ID card sensor(optional for IC card), validate freely by Card, fingerprint and password combination, access control is more flexible and securely.
- With multi-level validation, lock combination and anti-pass back function, it suitable to the high-security places like bank and military ect.
- Support U disk to download or upload attendance records and fingerprint data. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.
- TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & share freely.
- With tamper alarm, over-time door opening alarm ect alarm functions
-Authentication modes are 1:1 and 1:N, user can register three fingers, max fingerprint capacity is 5,000 enrollment and 100,000 record
- Support multi development language(VB, C++, Delphi ect) SDK, and ODM/OEM software development
- Support English, French, Spanish, Korean ect different languages.

ModelZDTA-F3
Max User & Card Capacity 5,000
Fingerprint Capacity5,000
Transaction Capacity100,000
LanguageEnglish
Push Technology (UDP)Device Pushes real-time attendance record to the RAMS Software automatically, including the offline records.
Display2.4 inch TFT Screen
Fingerprint SensorOptical Sensing <0.5s identification speed
CommunicationTCP/IP, USB Memory Disk, optional for WIFI
Authentication MethodFingerprint/ RFID Card (125Khz)/ Password
BellBuilt-in Timing Bell (Scheduled-bell, can connect to external timing bell)
Access Control InterfaceWiegand26/34, Door Lock, Siren, Release Button, Doorbell, Door Sensor, Alarm output, Auxiliary Input
Professional access functionOpen door by multilevel verification, anti-pass back
Optional functionsAdd to 10,000 templates, MIFARE CARD   function
Power SupplyDC 12V/1A
Operating environmentOperating Temp: 0°c - 45°c,  Humidity:20%-80%
Terminal Size:190(L)*80(W)*33(H)mm

Packing Size: 27.5*18.7*8.6CM, Gross Weight: 0.59kg

Package Contents:

  • Standard Exporting Packing Box
