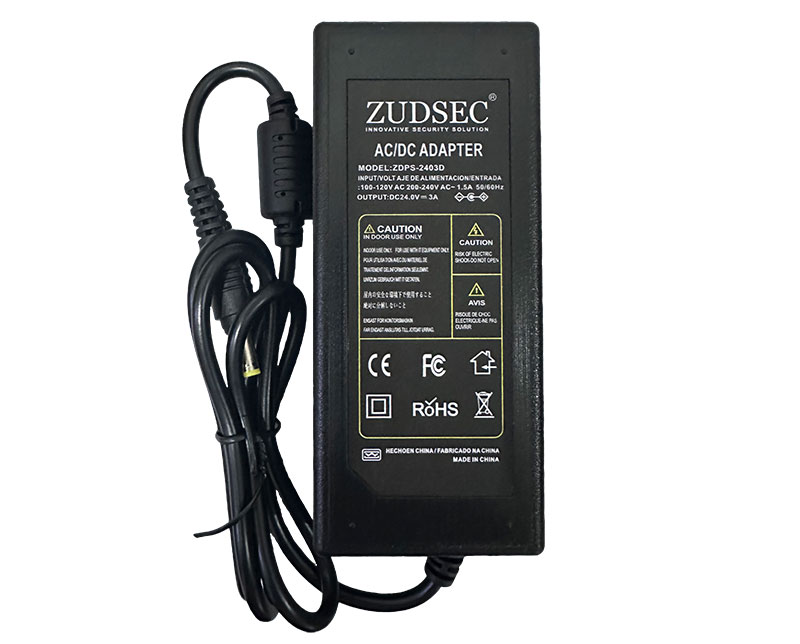

Desktop Integrated power adapter: ZDPS-2405D
Multi-Angle View

Desktop Integrated power adapter

MODELZDPS-2405D/2403D/2402D

Facebook Twitter InLink instagram Youtube Skype
  • Built-in EMI filter

  • 100% Load burn-in test

  • Wide range of input voltage

  • Accurate and stable output voltage

  • Output over-voltage, over-current and short-circuit protection

  • Average no trouble working>20,000 hours


Desktop Integrated power adapter: It's widely usefor laptop, moniter, Toys, DVD/ MP3/MP4, IP camera, Antenna Communications products, Wireless AP, Wireless Router, IP phones, Security Systems, Set-top boxes, Health care electronics, LED lighting products and so on.


- Optional Model:

* ZDPS-2403D (DC12V, 3A)

* ZDPS-2402D (DC12V, 2A)


- Universal Input: 100-240V AC 50/60Hz
- Safety: UL/CUL/TUV/GS/CE/CCC compliance
- With PFC or without PFC optional
- High efficiency & low power consumption
- Short Circuit Protection
- Over Current Protection
- Over Voltage Protection
- Light Weight & Compact
- At 25 degree condition, maximum working load, running 50000 hours without fault.

ModelZDPS-2405
Input100-240VAC
OutputDC24V/5A
Voltage linear regulation rate±5%
Main output ripple & noise≤200mV
Stand By Power Consumption≤0.21W
ProtectionOCP,OVP,OTP,Short
Operating Temperature/HumidityTemp:-10~40ºC,Humidity:20%-90RH
Storage Temperature/HumidityTemp:-40~70ºC,Humidity:10%-95RH
EMI & SafetyCompliance to GB4943 Class B & EN60950
Frequency50-60Hz
No-load Power Consumption0.3W max


Package Contents:

  • Standard Exporting Packing Box
