Mini Electromagnetic lock: ZDL-60
Multi-Angle View

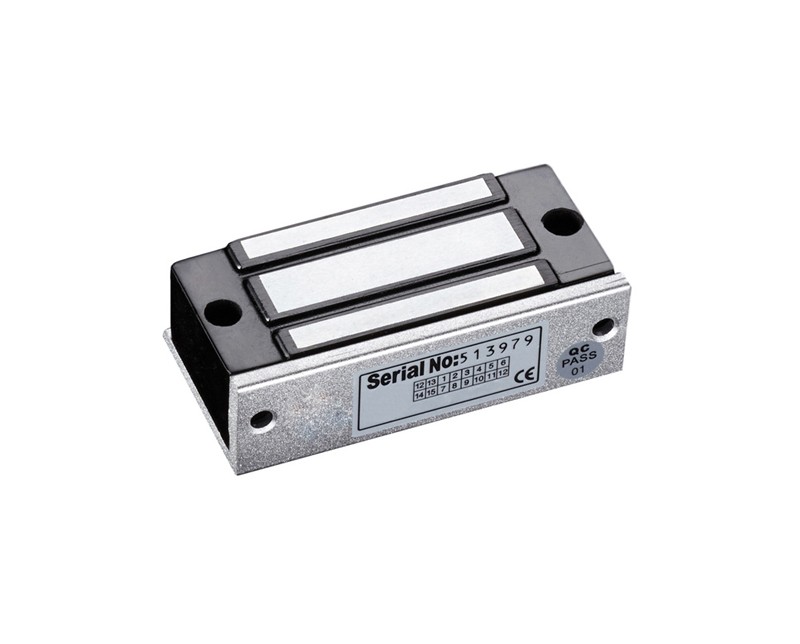

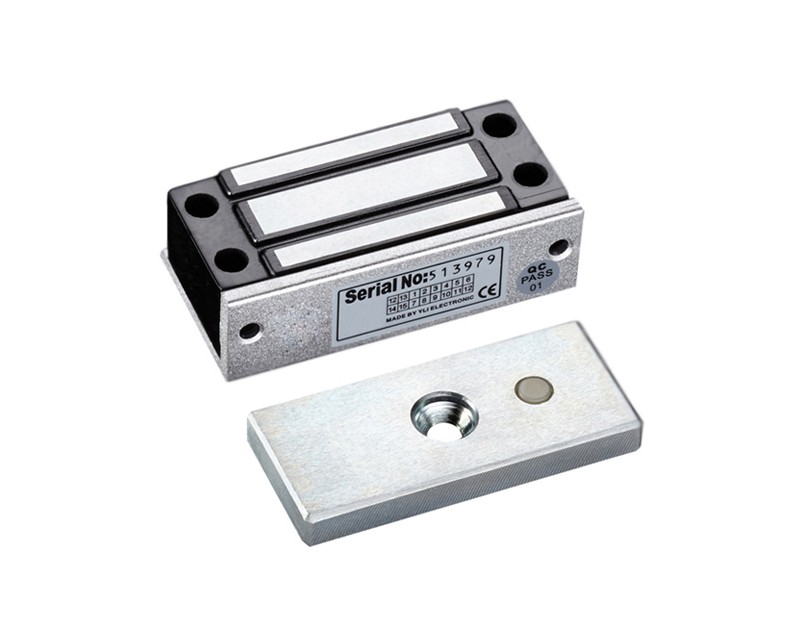

60KG Mini Electromagnetic lock

MODELZDL-60

Facebook Twitter InLink instagram Youtube Skype
  • Input voltage:DC12V、or DC24 (can be customized)

  • Holding Force: 60Kgs(120Lbs)

  • Fail-safe type (Power to lock)

  • No residual magnetism Designed

  • Finishes for Shell: Anodized aluninum

  • Suitable for: showcase, cabinet door etc.



Mini Electromagnetic lock:   DC12V、or DC24,  Holding force is 60Kgs(120Lbs), it is designed for showcase, cabinet door and easy to install.

- Input voltage:DC12V、or DC24 (can be customized)
- Holding Force: 60Kgs(120Lbs)
No residual magnetism Designed

- Fail-safe type (Power to lock): Power-on to lock, Power-off to open).
- Suitable for: showcase, cabinet door etc.
- Finishes for Shell: Anodized aluninum
- Finishes for Magnetic: Zinc
- Finishes for Armature: Zinc

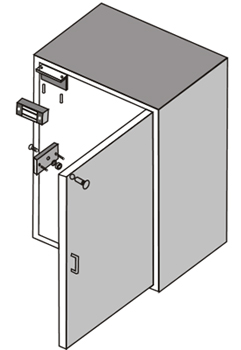

Standard Installation:


                         Mini Electromagnetic lock -Single Door(图1)


  • Voltage: 12/24VDC+10%

  • Power consumption: 12V/120mA

  • Holding Force: 60kg(120Lbs)

  • Material: Anodized aluminum

  • Suitable:  showcase, File Cabinet, Display Cabinet

  • Surface Temp: ≤+20°C

  • Operating Temp: 10~+55°C(14-131F) ; Suitable Humidity:  0~90%

  • Product dimension:80×40×25mm(Body); 75×33×11.5mm(Magnet)

  • Packing: 20*5*4cm, Weight: 0.6Kgs


Package Contents:

  • Standard Exporting Packing Box
