Facial Time Attendance Terminal with Access Control_Time Attendance_Access Control Solutions_Products

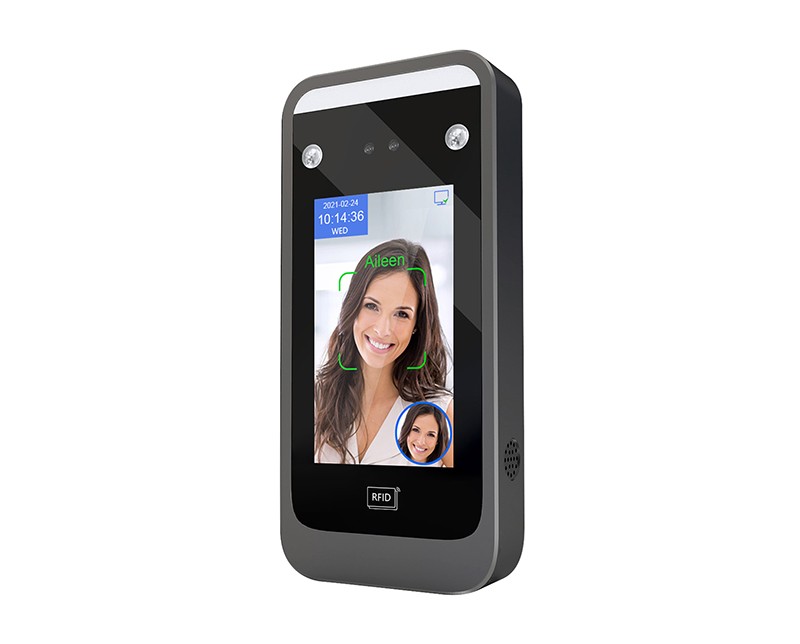

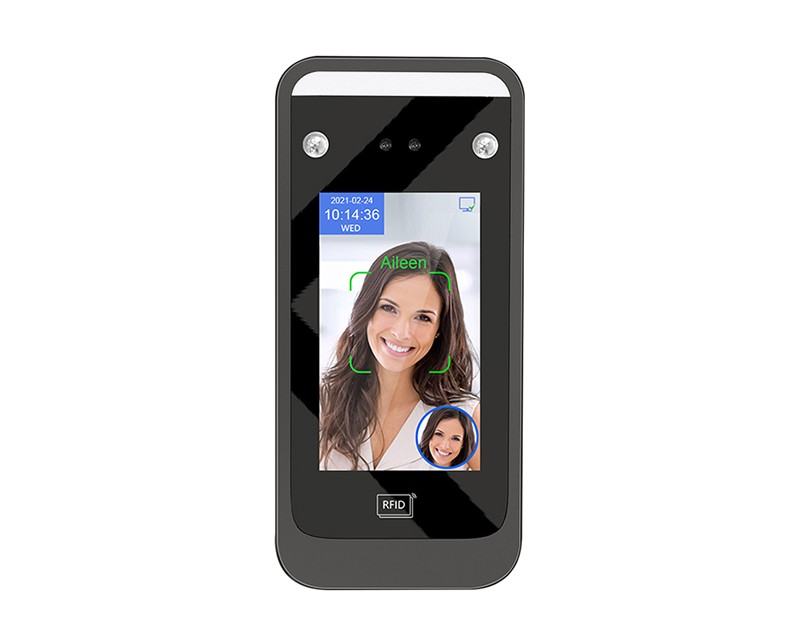

Facial Time Attendance Terminal with Access Control

MODELZDTA-F43

AI Dynamic Face recognition with Access Control
Face capacity：5000
ID Card：5000
Password capacity: 5000
Display：4.3 inch TFT touch panel
Camera：double HD Infrared camera
Verify mode：Face,Fingerprint, Password, IC card
Communication：USB/U-disk/TCP/IP(WiFi optional)

GET A FREE QUOTE

Overview Features Specifications Other Information

Facial Time Attendance Terminal: 4.3" touch screen, AI Dynamic Face recognition, 5000 face capacity, fast recognition speed less than 0.02s, Single user/Mulit-user recongition, Face/Password/ID or IC card multiple access control verify mode, and many more powerful function. It's widely used for Passenger Turnstile, Government Institution, Office, Building, Apartment,Community, and factory etc.

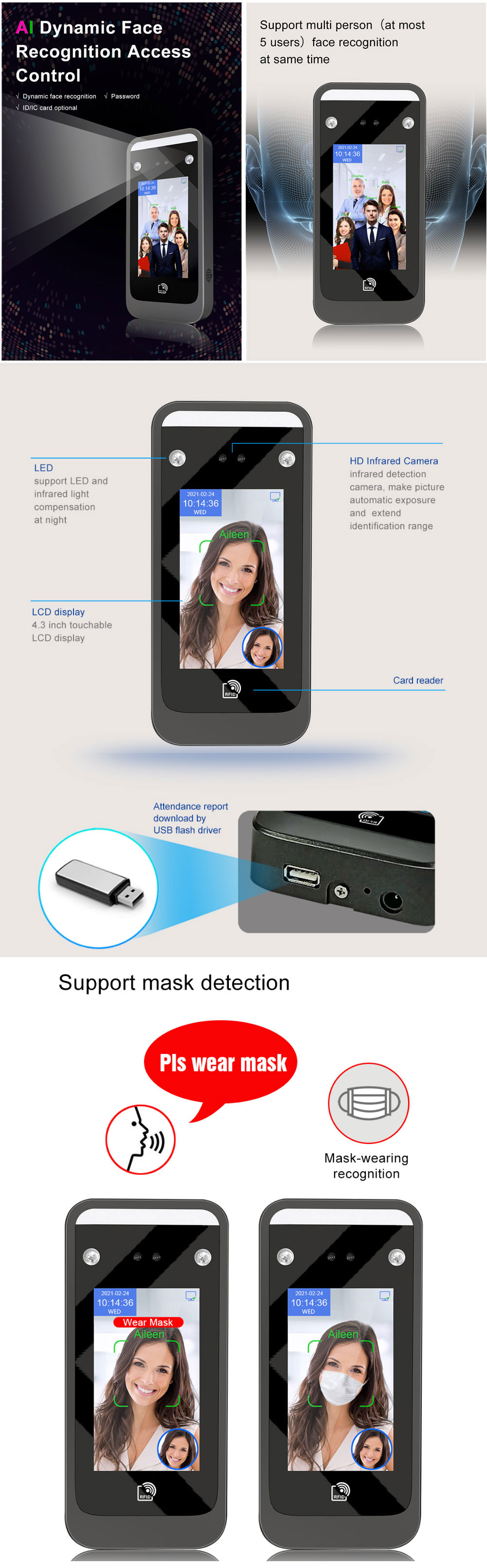

Facial Time Attendance Terminal with Access Control(图1)

- Dynamic Face recognition with Access Control

- Face capacity：5000

- ID Card：5000

- Password capacity: 5000

- Record capacity：500,000

- Display：4.3 inch TFT touch panel

- Camera：double HD Infrared camera

- Verify mode：Face, Password, ID card

- Communication：USB/U-disk/TCP/IP(WiFi optional)

- Voltage/current：DC9V~12V/1A

- Recognition distance: 0.5~2.5m

- Access Control function: Wiegand26/34, Door Lock, Siren, Release Button, Door Sensor.Doorbell function

Model	ZDTA-F43
Product name	Al Dynamic Face Recognition Time Attendance Access Control Terminal
Screen	4.3 Inch, HD 272*480, Capacitive Touch Screen
Keypa	Touch keypad
Operation system	LINUX 3.10
CPU,NPU	1.2G Dual-Core ARM Cortex-A7, 6000 (0.6T)
RAM	256MB DDR3
ROM	eMMC Flash 4GB
Binocular camera	200W Colorful WDR+200W Infrared live camera
Logs capacity	500000
Face Registration	Local operation: Enroll face with machine, impot user photo with U disk Sofware operation: Import user photo to sofware, capture user photo with camera
Verification	Dynamic face recognitin, password, ID/IC card optional
Face capacity	5000 (0000 optinal)
Card Capacity	5000 (50000 optinal), ID Card Standard, IC Card Optional
Password Capacity	5000 (0000 optinal)
Face Recognition Accuracy	99.70%
Recognition Speed	s0. 2s, support single user/muti user(at most 5 users) recognition at same time
Recognition Distance	0.5~2.5 meters (0.5~1.5 meters with live face recgnition on)
Prevent Photo	Dual camera anti-counterfeiting, prevent recognition with photo/video
Principle of Identification	Face algorithm technology of multi-task cascaded convolutional neural network based on video stream for dynamic face detection, tracking and recognition
WDR	Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight
USB	USB2.0x1. Support U disk import/export data
Power supply	DC12V interfacex 1
Speaker Interface	Reserved for extended Speaker Interface
Network Communication	TCP/IP, Support C/S LAN communication, Wifi (opional)
Free Attendance software	Support exporting excel atendance report with U disk
Shift	Support shit stting and importing shift schedule with U disk
Management Software	Support PC sofware to manage data through network connection with equipment
Access Control Function	Door unclosed alarm, forced door opening alarm, alarm linkage and output, one set of door opening signals,one set of alarm signals, time permission control, connect external access control reader,Wegand 26/34 output input
Environmental adaptability	Working temperature: -15C~ +45°C (storage temperature -40°C~+65C)， Working humidity: 20%~90% (storage humidty 20%~90+2%)， Dark enviroment: LED Soft light automatic fl light (Automatic control according to ambient light) Ambient light adaptation range: 0-50000LuX
Multi language	English, Spanish, Arabic, Thai, Farsi, Portuguese, French, ltalian, Japanese, Korean, etc
Broadcase and ring	Support display name, voice broadcase name, builin bell ring
Automatic fll light	Support infrared fl light, the white fl light automatcally lights up when face is captured in dark light
Working Current	stand- by current: 310mA , Working current: 520mA
QR Code Scanner	Support
Working Voltage	DC12V
Installation Way	Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand
Device Dimension	187.5x87. .5x26mm
Color box dimension	257x171x90mm
Carton dimension	Size: 480x438x229mm, 12Kg/carton, 10units/carton
