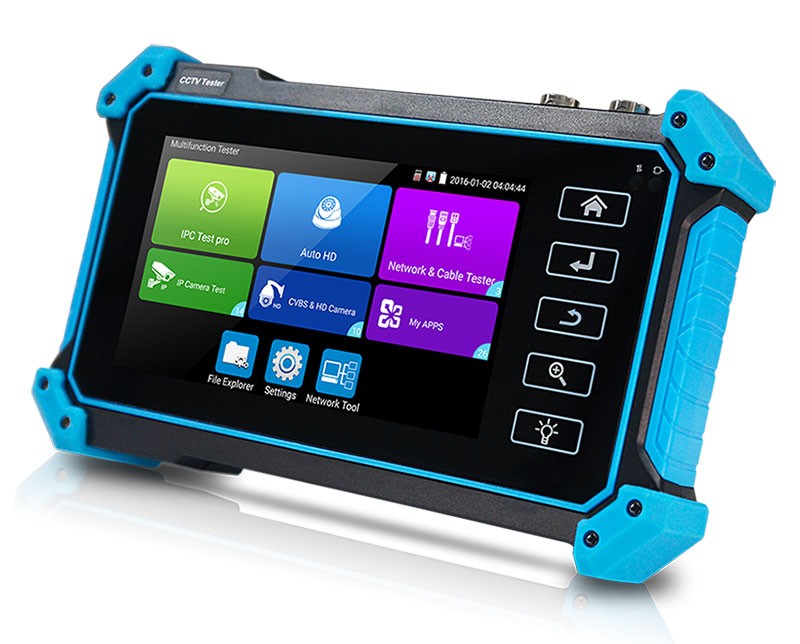

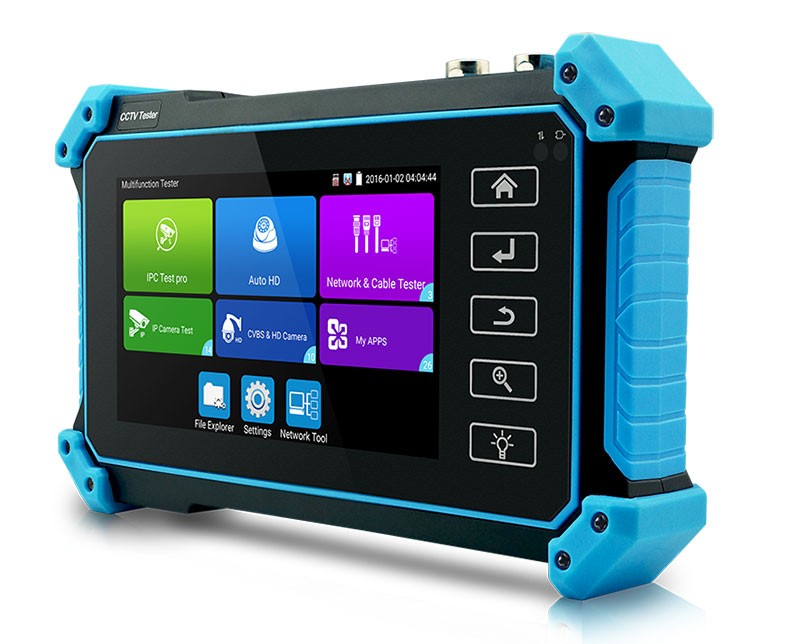

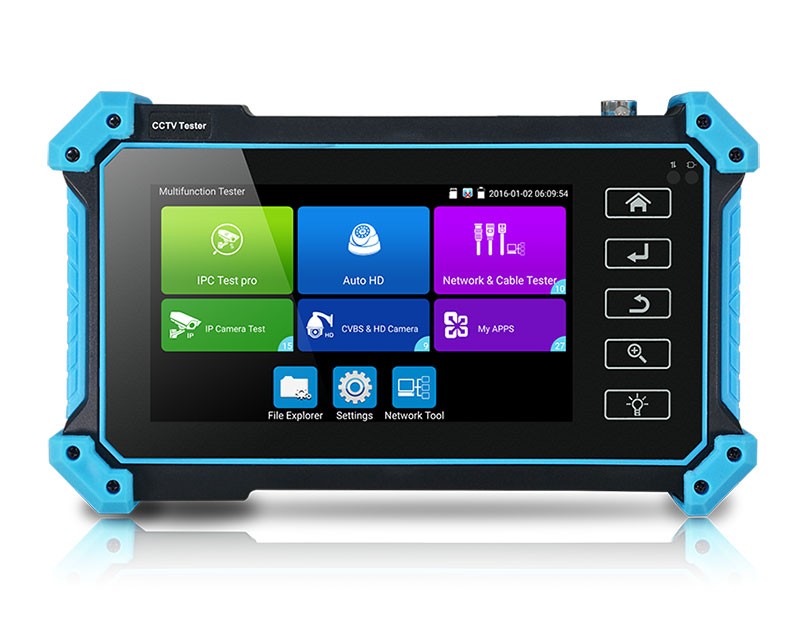

5.4" CCTV Tester: ZDCT-0068
Multi-Angle View
Multi-Angle View
Multi-Angle View
Multi-Angle View

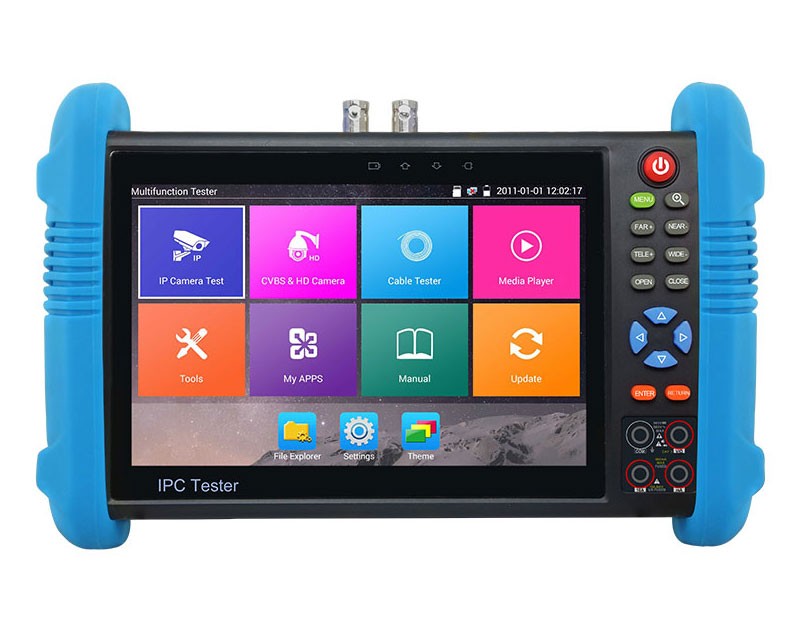

7" CCTV Tester: ZDCT-0098

CCTV Tester

MODELZDCT-0068

Facebook Twitter InLink instagram Youtube Skype
  • 5.4 Inch 5 in 1 CCTV Tester

  • CCTV system installation and maintenance

  • Network cabling project installation and maintenance

  • Dome camera, TVI/CVI/AHDcamera, IP 4K H.265 camera testing

  • Video transmission channel testing

  • PTZ controller

  •  IPS touch screen, Industrial-grade design


 CCTV Tester: ZDCT-0068 5.4 inch IPS touch screen IP camera CCTV  tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.


-  7" CCTV Tester:  ZDCT-0098 (High-end series optional)

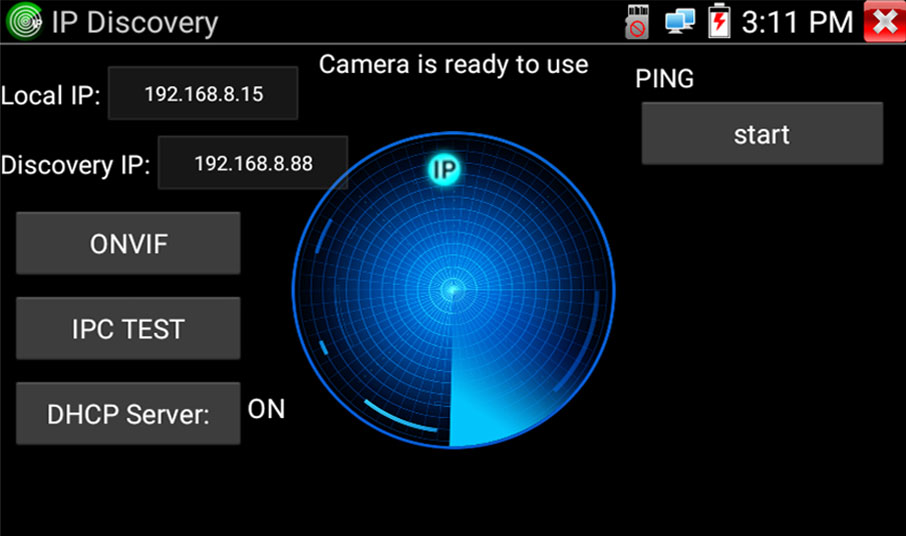

- IP Discovery:

Auto-scan the whole network segment IP, as well as auto-modify the tester's IP to the same network segment with the scanned camera's IP


 CCTV Tester(图1)

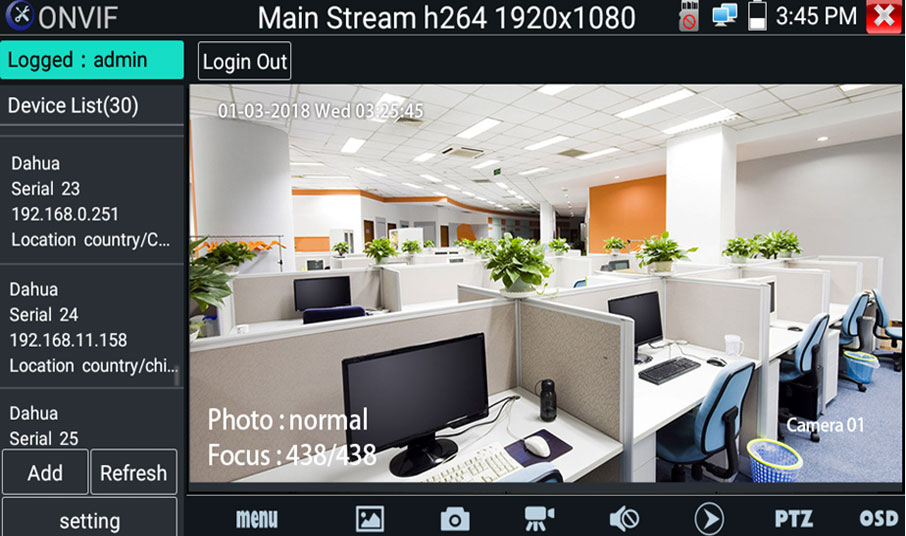

- Rapid ONVIF:

4K camera test via mainstream, support 12MP IP camera test.

OSD menu, can modify channel name.

Can search network segment IP camera address.


- CCTV Tester(图2)

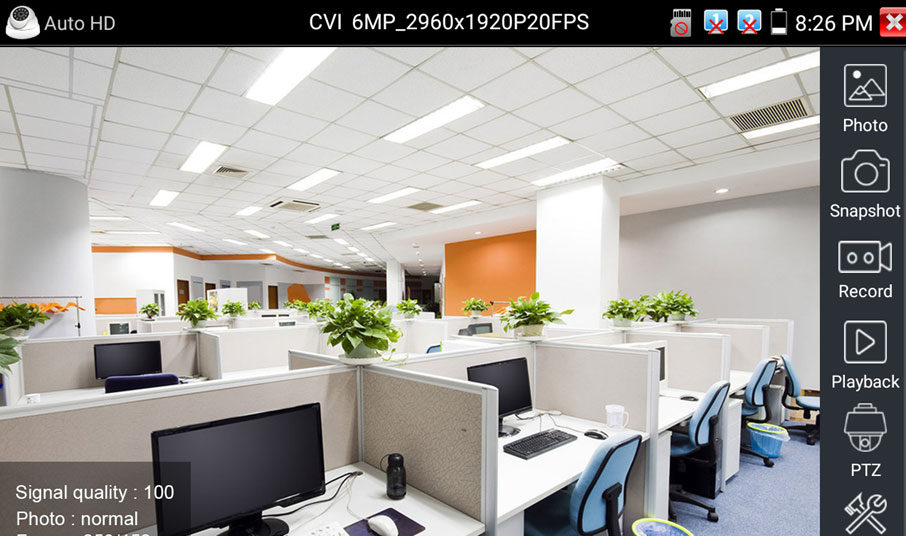

- Auto HD:

Auto recognize HD coax camera type and resolution, suport snapshot,

video record & playback, coaxial PTZ & call OSD menu


 CCTV Tester(图3)


- Cable Tracer:

Cable tracer and UTP cable test app i the same interface.

Can search network cable, BNC cable and shield cable, decisively rejects noise and false signals.

Locate cables quickly and easiy.


 CCTV Tester(图4)

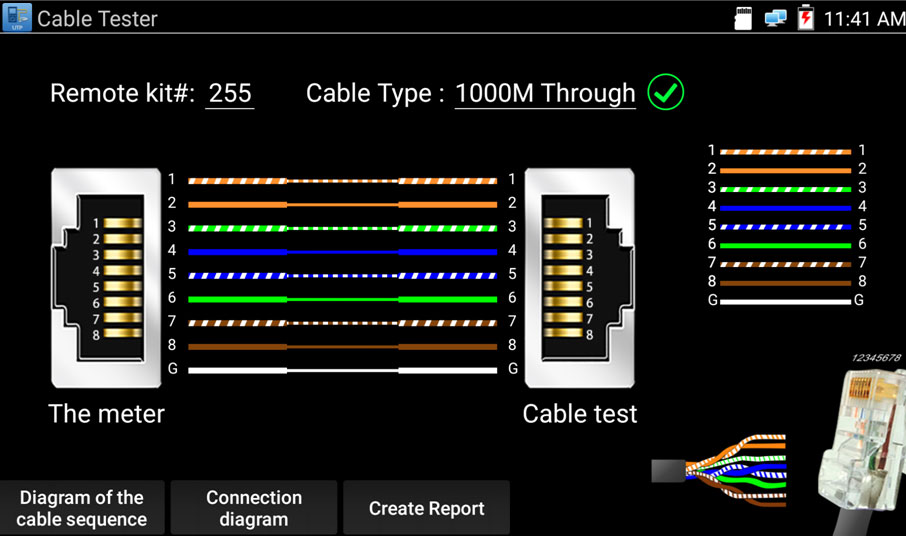

- Advanced UTP Cable Test:

UTP cable, BNC cable, telephone cable and shield cable etc sequence and continuity test, can save testing report.

Can detect the near-end, mid-end and far-end fault point of RJ45 cable connector.


 CCTV Tester(图5)



Camera Test:
- 5 inch IPS touch screen, 1920*1080 resolutions
- H.265 & H .264 IP, 4K video display via mainstream
- 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
- 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
- 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu
- Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.
- VGAinput, up to 1920 x 1200P 60FPS, support snapshot, video record& playback.*
- HDMI Input, up to 4K 30FPS, support snapshot, video record& playback.*
- Rapid ONVIF, Auto log in and display image, create testing report
-  IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
- AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
- HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
- Dahua test tool, support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name.
-IP and analog display image at the same time
- IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)


Cable test:
- Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.
- RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report.
- Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time

Other Functions:
- Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
-Tester Play: Tester, android version mobile phone and PC display at the same time
- Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
- Customers self update software, you can install apps with android version
- Media player, 4K video files and MKV/MP4 media files play
- Display its genuine resolution of the IP camera images
- Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
-7.4 V /3350mAh Li-ion Battery, after 3-4 hours charging, working time lasts 5 hours- CVBS camera test, PTZ controller
- DC12V/3A power output, camera can be powered from DC 12 Voltage.
- Rapid video, just by one key to detect all network cameras and auto display
- Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot


LCDItem         ZDCT-0068
Display New 5 inch IPS touch screen,   1920x1080 resolution
  Video Mode CVBS1 channel BNC input, NTSC/PAL   (Auto adapt)
PTZ control,   RS485 control, Baud 600-115200bps, compatible with more than 30 protocols   such as PELCO-D/P, Samsung, Panasonic etc
IP camera   test
    4k/H.265/H.264
IP Discovery/Quick ONVIF/IPC   test /RTSP play /Client APK
Rapid VideoAuto view the video, create testing report
HIKVISION test tool support batch activate HIKVISION cameras and modify IP address,   modify password etc. Self-defined modify channel name, can quickly change   H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
DAHUA test tool support batch activate DAHUA cameras and modify IP   address,username and password. Self-defined modify channel name.
HD Coaxial test*8MP TVI camera test, 3840 x   2160P 12.5/15 FPS, UTC control/ call OSD menu
8MP CVI camera   test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu
8MP AHD test,   3840 x 2160P 15FPS, UTC control / call OSD menu
Auto HD app,   auto recognize HD coax camera type and resolution, support snapshot, video   record& playback, coaxial PTZ & call OSD menu
HDMI input* 1 channel HDMI input, support   4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/
1 channel HDMI   input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x   1440P/
    1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P   /1280×900P /1440×900P, etc
VGA input*1 channel VGA input, support   1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/
    1920×1080P 60FPS /1792×1344P 60FPS /1680x 1050P 60FPS/(1600x1200P/900P   60FPS)/1440x900P 60FPS/1360x768P 60FPS/(1280x1024/960/800/768/720P   60FPS)/1152x870P 60FPS/1024x768P 60FPS/800x600P 60FPS/600x480P 60FPS.

Zoom Image4x zoom, to enlarge image,   Screen snapshot, record, save, view and record and play back
Power output12V/3A power Output DC12V/3A power out,   supply temporarily power for the camera
PoE power output48V PoE power output, max   power 25.5W
 Cable testDigital Cable tracer Search BNC cable, network   cable and telephone cable from the mess cables. Cable search and UTP cable   can test at the same time *
UTP cable test Test UTP cable connection   status and display on the screen. Can detect the near-end, mid-end and   far-end fault point of the network cable crystal head.
RJ45 TDRcable testTest cable pair status,   length, attenuation, reflectivity, impedance, skew, can create test report.   measurement range 180M.
Tester Playscreen projection:Tester, mobile phone and PC display   at the same time (For android version mobile phone)
Network testTrace route, Link monitor,DHCP   server, port flashing, Ping test
Wi-FiBuilt in WIFI, speeds 150M,   display wireless camera image
Audio test1 channel audio signal input,   test whether sound normal.
Power managementDisplay DC 12V input &   output voltage and power in real time
Data monitor Captures and analyzes the   command data from controlling device, also can send hexadecimal
External power supplyDC 12V 1A
BatteryBuilt-in 7.4V   Li-ion battery, 3350mAh
RechargeableAfter charging 3-4 hours,   normal working time 5 hours
Operation settingOSD menu, select your desired   language: English, Chinese, Korean, Russian, Italian, French, Polish,   Spanish, Japanese, Deutsch, Turkish     Portuguese, Czech etc
Auto off1-30 (mins)
Working Temperature-10℃---+50℃
Working Humidity30%-90%
Dimension/Weight183mm x 110mm x 36.5mm /0.32kg


Package contents:

  • Tester host

  • Network cable tester

  • Adaptor DC12V/1A

  • Polymer lithium ion battery

  • DC Power cable/BNC cable/ RS485 cable/ Audio cable
