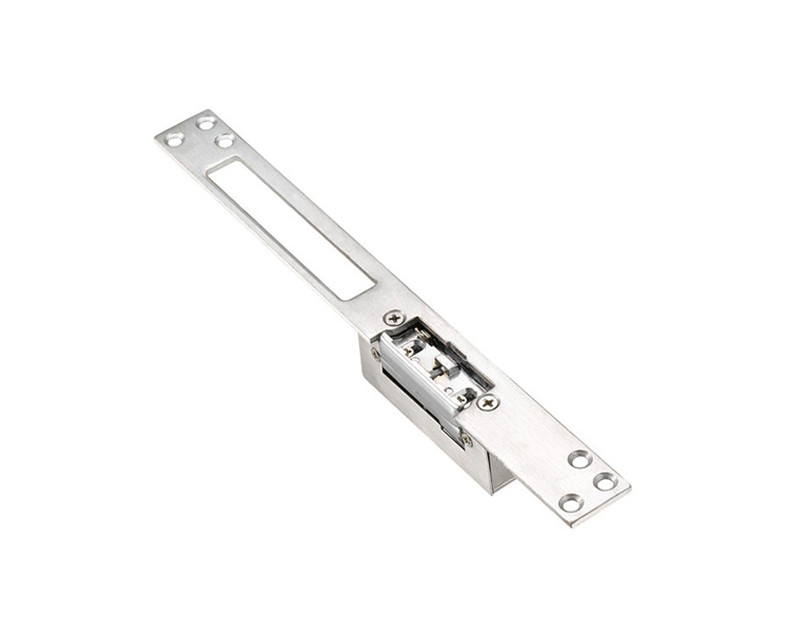

Long-Type Electric Strike: ZDL-120NC-L

Long-Type Electric Strike

MODELZDL-120NC/NO-L

Facebook Twitter InLink instagram Youtube Skype
  • Holding Stength: 300kg

  • With Long face plate, Grey Color

  • Field selectable fail safe/fail secure

  • Aluminum, Stainless Steel Bolt, Painted Steel

  • Testing to 1000000 cycles

  • High-Temperature Painted, Duable and Beatiful Artical

  • Suitable For: Wooden Door,Metal Door,PVC Door


Long-type Electric Strike: Stainless Steel structure,adopt high quality parts, DC12V; Suitable For: Narrow Wooden Door, Narrow Metal Door etc


- Optional Model No.:
* Fail Safe(ZDL-120NC-L):     Power-off to Open
* Fail Secure(ZDL-120NO-L): Power-off to Lock



- Holding Stength: 300kg,Grey Color
- Aluminum, Stainless Steel Bolt
Field selectable fail safe/fail secure
- Testing to 1000000 cycles
- High-Temperature Painted,Duable and Beatiful Artical


Standard-type Electric Strike(图1)

  • Face plate Housing: Painted Steel
    Bolt Housing: Stainless steel, Draw the Polishing of silk

  • Input Voltage:

  • ZDL-120NO: DC12V;  Current: 800mA

  • ZDL-120NC: DC12V;  Current: 120~300mA

  • Feature: Fail Secure(ZDL-120NO); Fail Safe(ZDL-120NC)

  • Function: Built-out MOV

  • Holding Stength: 300kg

  • Opening Mode: 90 Degree Swinging Door

  • Suitable For: Narrow Wooden Door, Narrow Metal Door etc

  • Surface Temperature: Within +20℃; Suitable Temperature: -10~+55℃(14-131F)

  • Lock Size: 250Lx25Wx31H(mm); Strike: 45mm

  • Packing size: 26.5*4.1*3.5cm, Gross Weight: 0.3kg


Package Contents:

  • Standard Exporting Packing Box
