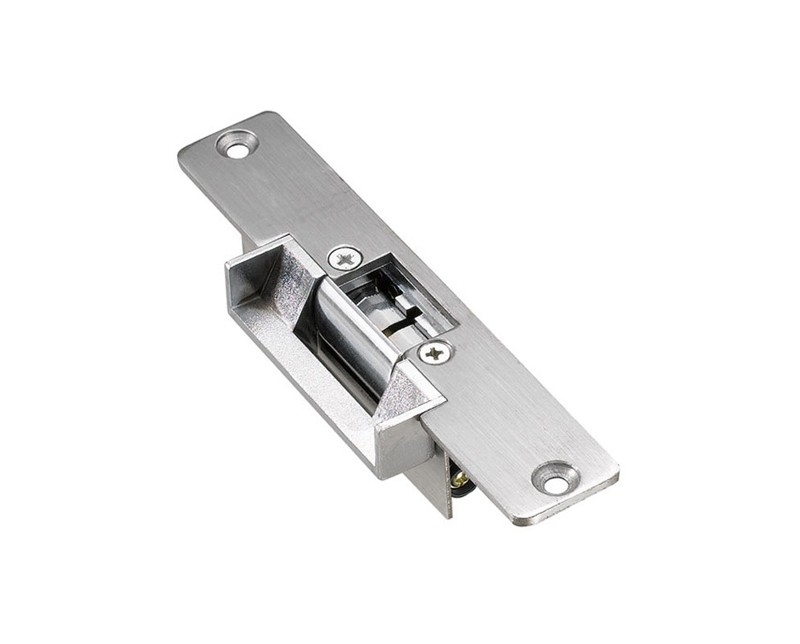

Standard-type Electric Strike: With Signal (NO/NC/COM) Feedback, Stainless Steel structure,adopt high quality parts, DC12V; Suitable For: Wooden Door,Metal Door,PVC Door.

- Optional Model No.:
* Fail Safe(ZDL-130NC-S):     Power-off to Open
* Fail Secure(ZDL-130NO-S): Power-off to Lock

- With Signal output (NO/NC/COM)
- Holding Stength: 500kg,Grey Color
- Field selectable fail safe/fail secure

- Aluminum, Stainless Steel Bolt
- Testing to 1000000 cycles
- High-Temperature Painted,Duable and Beatiful Artical

• Bolt structure: Stainless Steel;
  Bolt Housing: Stainless steel, Draw the Polishing of silk
  Face plate Housing: Painted Steel

• Voltage: DC12V; Current: 400mA

• Feature: Fail Secure(ZDL-130NO-S); Fail Safe(ZDL-130NC-S)

• Function: Built-out MOV

• Holding Stength: 500kg

• Suitable For: Wooden Door,Metal Door,PVC Door

• Surface Temperature: Within +20℃; Suitable Temperature: -10～+55℃(14-131F)

• Lock Size: 150Lx39.5Wx35H(mm); Strike: 45mm

• Packing Size: 19.5X4X5.5CM; Gross Weight: 0.3kg

Package Contents:

• Standard Exporting Packing Box
