Standard-type Electric Strike: ZDL-130NC

Standard-type Electric Strike

MODELZDL-130NC/NO

Facebook Twitter InLink instagram Youtube Skype
  • Holding Stength: 500kg

  • Grey Color

  • Field selectable fail safe/fail secure

  • Aluminum, Stainless Steel Bolt

  • Testing to 1000000 cycles

  • High-Temperature Painted, Duable and Beatiful Artical

  • Suitable For: Wooden Door,Metal Door,PVC Door

Standard-type Electric Strike: Stainless Steel structure,adopt high quality parts, DC12V; Suitable For: Wooden Door,Metal Door,PVC Door.


- Optional Model No.:
* Fail Safe(ZDL-130NC):     Power-off to Open
* Fail Secure(ZDL-130NO): Power-off to Lock


- Holding Stength: 500kg,Grey Color
- Aluminum, Stainless Steel Bolt
Field selectable fail safe/fail secure

- Testing to 1000000 cycles
- High-Temperature Painted,Duable and Beatiful Artical

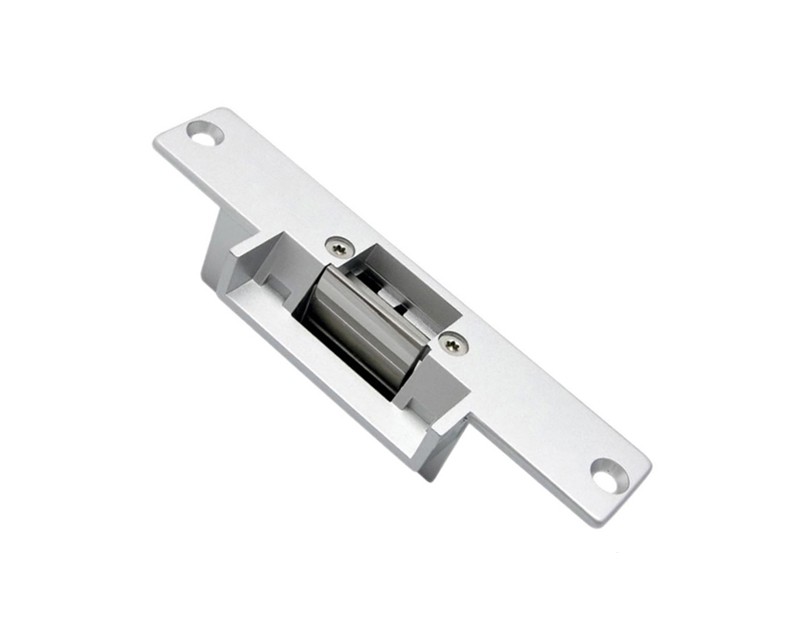

Standard-type Electric Strike(图1)


  • Bolt structure: Stainless Steel;
    Bolt Housing: Stainless steel, Draw the Polishing of silk
    Face plate Housing: Painted Steel

  • Voltage: DC12V; Current: 450mA(ZDL-130NO); 200mA(ZDL-130NC)

  • Feature: Fail Secure(ZDL-130NO); Fail Safe(ZDL-130NC)

  • Function: Built-out MOV

  • Holding Stength: 500kg

  • Opening Mode: 90 Degree Swinging Door

  • Suitable For: Wooden Door,Metal Door,PVC Door

  • Surface Temperature: Within +20℃; Suitable Temperature: -10~+55℃(14-131F)

  • Lock Size: 150Lx39.5Wx35H(mm); Strike: 30mm

  • Packing Size: 19.5X4X5.5CM; Gross Weight: 0.3kg


Package Contents:

  • Standard Exporting Packing Box
