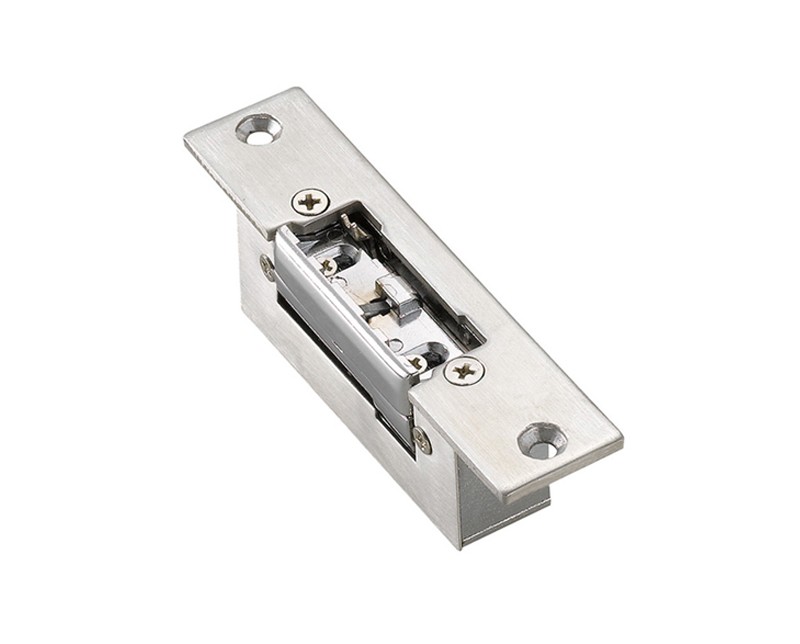

Narrow-type Electric Strike: Stainless Steel structure,adopt high quality parts, DC12V; Suitable For: Narrow Wooden Door,Narrow Metal Door etc

- Optional Model No.:
* Fail Safe(ZDL-120NC):     Power-off to Open
* Fail Secure(ZDL-120NO): Power-off to Lock

- Holding Stength: 300kg,Grey Color
- Aluminum, Stainless Steel Bolt
- Field selectable fail safe/fail secure

- Testing to 1000000 cycles
- High-Temperature Painted,Duable and Beatiful Artical

• Face plate Housing: Painted Steel
  Bolt Housing: Stainless steel,Draw the Polishing of silk


• Voltage: DC12V; Current: 280mA

• Feature: Fail Secure(ZDL-120NO); Fail Safe(ZDL-120NC)

• Function: Built-out MOV

• Holding Stength: 300kg

• Opening Mode: 90 Degree Swinging Door

• Suitable For: Narrow Wooden Door,Narrow Metal Door etc

• Surface Temperature: Within +20℃; Suitable Temperature: -10～+55℃(14-131F)

• Lock Size: 110Lx25Wx31H(mm); Strike: 45mm

• Weight: 0.28kg

Package Contents:

• Standard Exporting Packing Box
