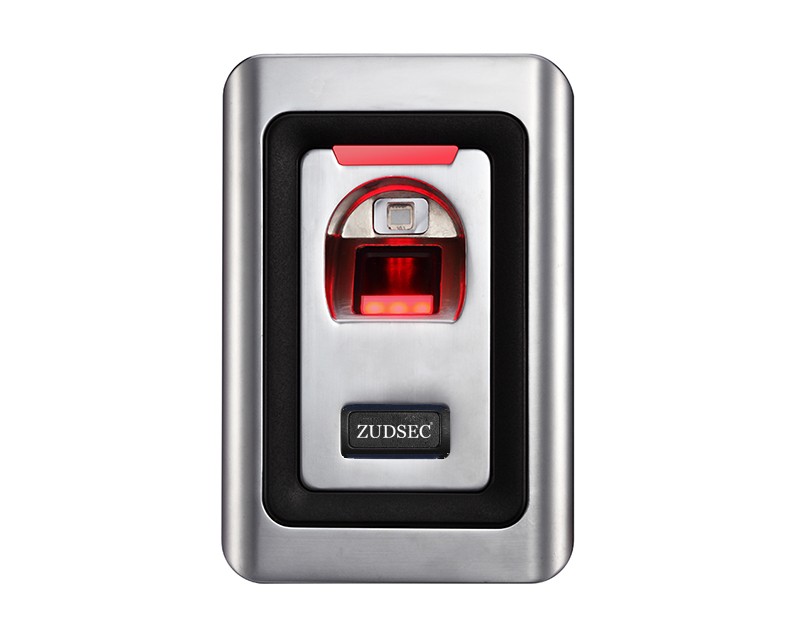

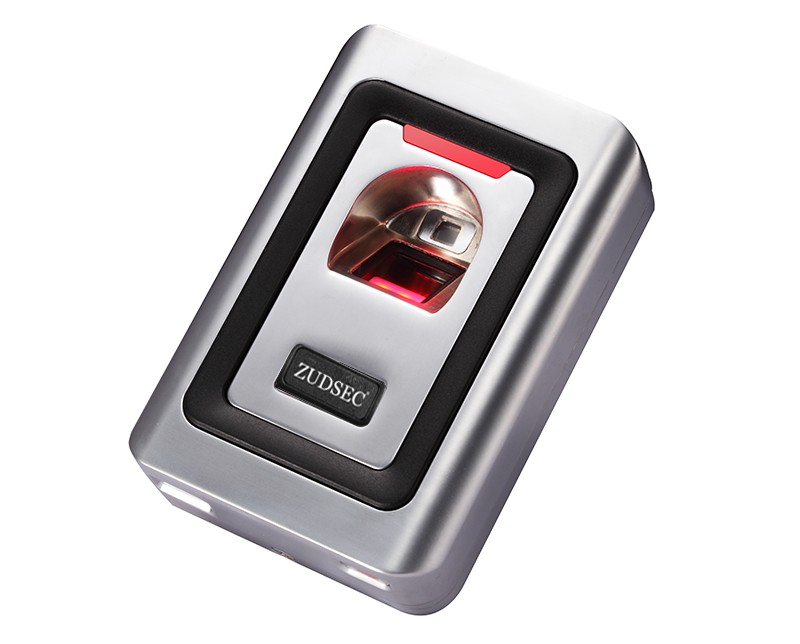

RFID & Fingerprint Access Control: ZDAC-1000EM
Multi-Angel View
Multi-Angel View

RFID & Fingerprint Access Control

MODELZDAC-1000EM

Facebook Twitter InLink instagram Youtube Skype
  • Anti-vandal Metal shell

  • 2 access ways: Support Fingerprint /  125Kz EM card

  • Can be used as either Slave Reader or Controller

  • Can be connected to other controllers as its slaver reader

  • Wiegand input; wiegand output

  • 1000 Fingerprint users; 2000 RFID card users;

  • Working way: Off-line

  • With Manager card so easy to add and delete users


RFID & Fingerprint Access Control: Metal shell, anti-vandal design; ZDAC-1000EM is the new member of F Series Standalone Fingerprint access control, as traditional it is in metal shell, anti-vandal, supports fingerprint, besides, ZDAC-1000EM support RFID card (125KHZ EM card) and wiegand interface. The high security and more powerful feature make it an ideal choice for door access.  By Remote control or Master card for programming, it is so user friendly that anyone can use it.


User capacity 3000, including 1000 fingerprint users and 2000 RFID card users. With the flexible user capacity, it is suitable to be installed from small house such as personal rooms, shops, office to public place such as large factories, companies.

- Support Fingerprint, support 125KHZ EM ID card
- 1000 Fingerprint users, 2000 RFID card users
- Wiegand output, wiegand input
- Besides standalone, it can connect to other controller as the salve reader
- 2 pcs ZDAC-1000EM can interconnect; 2 pcs ZDAC-1000EM can be interlocked;
-  Wiegand interface: wiegand 26
- Remote control / Master card for programming
- Metal shell, anti-vandal design.
- Anti-magnetic & lock output current short protect;
- Support connecting any card readers with wiegand interface, such as HID, Mifare, EM
- Full of 2160 users, searching speed <0.1 S.
- DC input: 12DC,100mA


ModelZDAC-1000EM
 Memory capacity 3000
 Fingerprint capacity 1000
 Card capacity  2000
 Card type 125KHZ EM ID card
 Card reading distance 50 ± 30 mm
 Supply Voltage 12VDC±10%
 Sleeping Current <20mA
 Stay Current <90mA
 Temperature -15ºC-60ºC
 Humidity 20%RH-95%RH
 Lock output load capacity 20A
 Alarm output load capacity 20A
 Resolution 450 DPI
 Fingerprint input time <1S
 Identification time <1S
 FAR <0.001%
 FRR <0.1%
 Dimensions 110L*70W*30H(mm)
 N/W 500g
 G/W 700g


* Packing box: 14*10*7cm;   Weight:  0.7kg /pc



Package Contents:

  • Standard Exporting Packing Box
