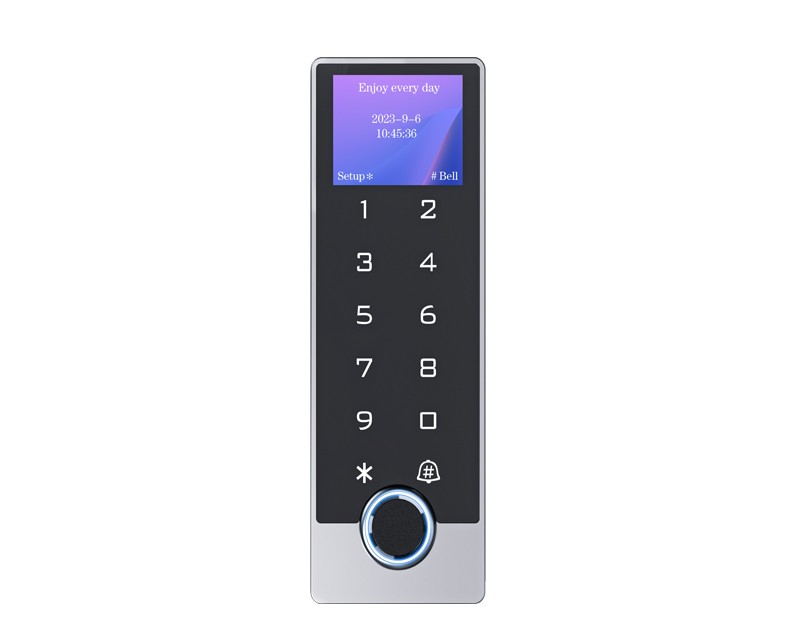

Plastic Panel: ZDAC-T3FWLP

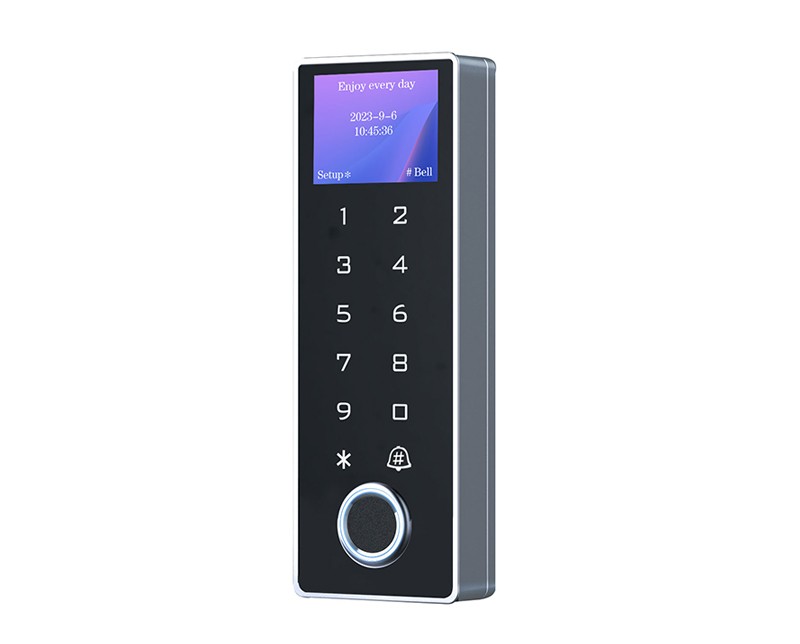

Plastic Panel: ZDAC-T2FWLP

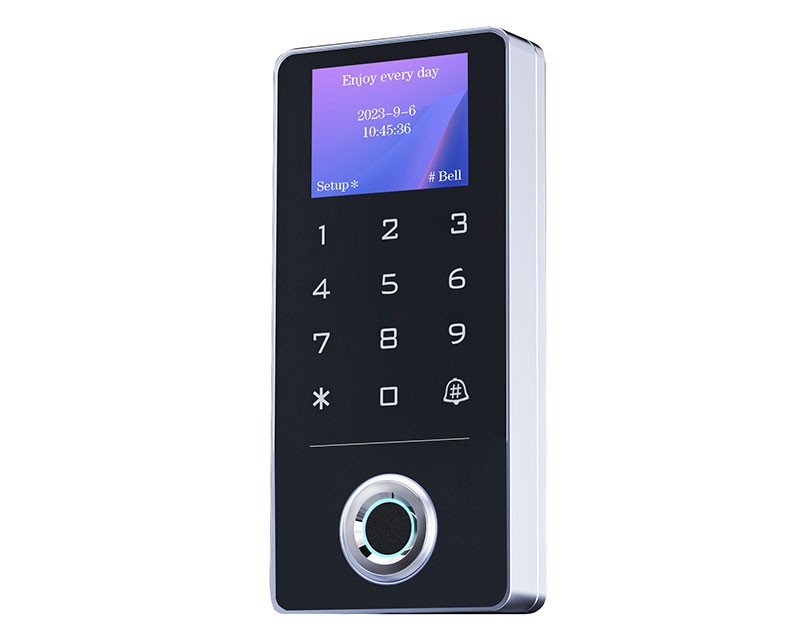

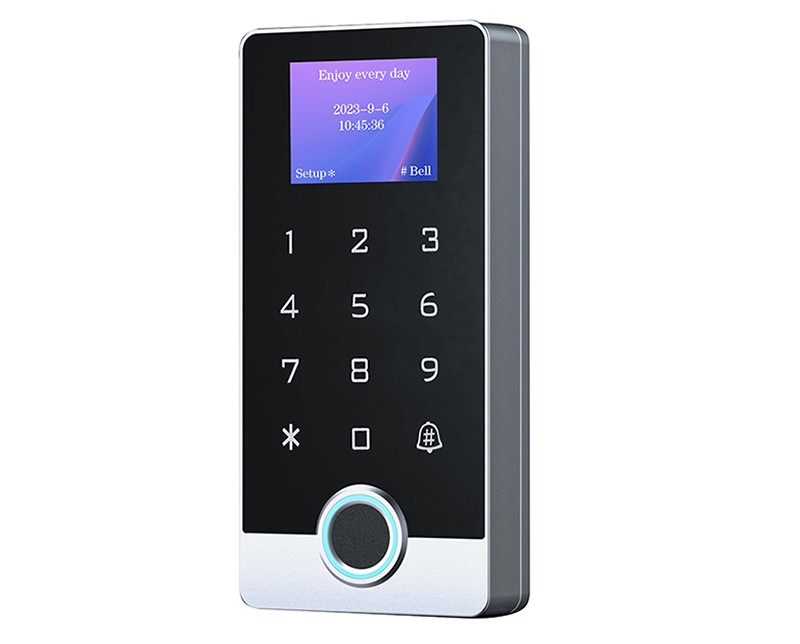

Metal Panel: ZDAC-T3FWL
Metal Panel: ZDAC-T4FWL

LCD Waterproof Fingerprint Access Control -WiFi Optional

MODELZDAC-T4FWL

Facebook Twitter InLink instagram Youtube Skype
  • LCD menu configuration & Voice for easy setting

  • Touch Keypad, WiFi & Waterproof optional

  • Supporting fingerprint, card and password

  • 200 Fingerprint users, 10000 RFID users & PIN

  • Wiegand output, wiegand input

  • Wiegand interface: wiegand 26

  • Metal shell, anti-vandal design.


LCD Touch Keypad Fingerprint Access Control: LCD screen & Voice fucntion, Touch Keypad, Metal case, App Control(Optional) Anti-vandal,Multi-function standalone access controller and reader, ZudSec LCD Series is a new generation on multifunctional standalone access control.It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable . It contains reader mode and standalone access control mode etc. It's widely applied to different occasions, such as office, residential communities, villa, bank and prison etc..


-Optional model:

* ZDAC-T4FWL (Metal shell with IP68 Waterproof)

* ZDAC-T4FWL-WiFi  (Metal shell with WiFi + IP68 Waterproof)

* ZDAC-T2FWLP (Plastic shell with IP68 Waterproof)

* ZDAC-T2FWLP-WiFi  (Plastic shell with WiFi+ IP68 Waterproof)

* ZDAC-T3FWL (Metal shell with IP68 Waterproof)

* ZDAC-T3FWL-WiFi  (Metal shell with WiFi + IP68 Waterproof)

* ZDAC-T3FWLP (Plastic shell with IP68 Waterproof type)

* ZDAC-T3FWLP-WiFi  (Plastic shell with WiFi+ IP68 Waterproof)


LCD Touch Keypad Fingerprint Access Control -WiFi Optional(图1)



- Full message LCD menu configuration & voice function for easy setting

- Touch Keypad, Supporting fingerprint, ID card and password
- 200 Fingerprint users(ZDAC-T2FWLP: 248 Fingerprint), 10000 RFID users & PIN
- Wiegand output, wiegand input
- Besides standalone, it can connect to other controller as the salve reader
- Wiegand interface: wiegand 26
- Remote control / Master card for programming
- Metal shell, anti-vandal design.
- Anti-magnetic & lock output current short protect;
- Support connecting any card readers with wiegand interface, such as HID, 13.56MHz Mifare Card, or 125KHz EM card.
- Full of 2160 users, searching speed <0.1 S.
- DC input: 12DC,100mA

  • Access ways:Fingerprint, card, code, multiple combinationmethods, mobile phone App (Optional)

  • Card Type: 125KHz Card /13.56MHz Mifare card

  • Keypad Characteristic: Capacitive touch keypad

  • Output Way:  Contain reader mode, the transmission format could be adjusted by user

  • Access Way: Fingerprint , card,code or multiple combination methods,mobile phone App (Optional)

  • Admin Card: Support admin add card and admin delete card

  • Card Capacity: 10000,  Fingerprint: 200 users

  • Unlock Signal: NO, NC, COM output using relay

  • Alarm Output: Use MOS tube output to directly drive the alarm (optional)

  • Operating Voltage: DC12-24V

  • Operating Current:≤100mA;  Standby Current: ≤60mA

  • Operating Humidity: 0%-95%, Operating Temperature:-40℃-60℃

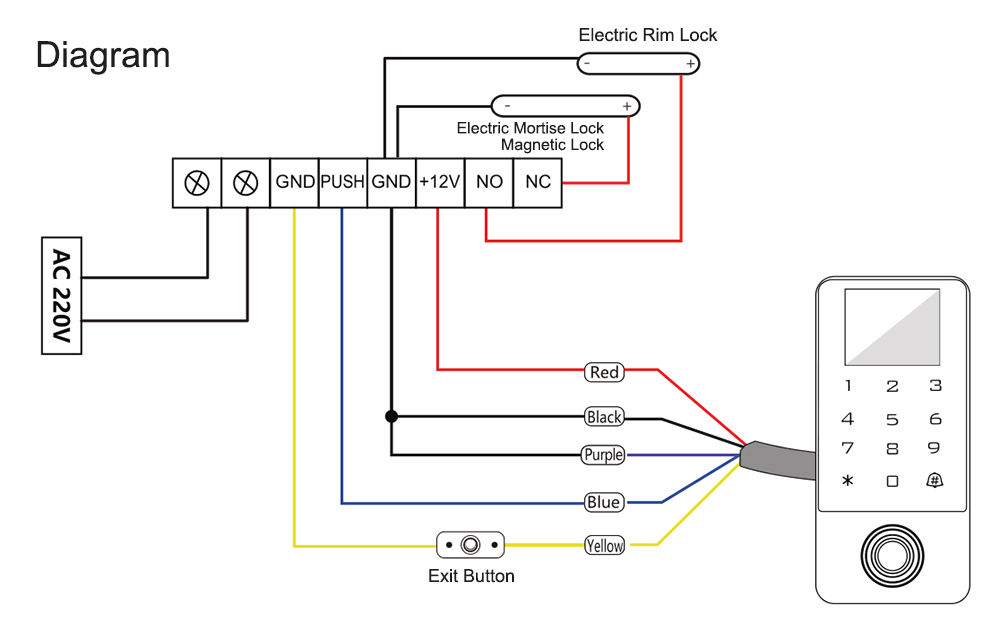

LCD Touch Keypad Fingerprint Access Control -WiFi Optional(图1)


Package Contents:

  • Standard Exporting Packing Box
