ZDAS-F5 with  Capacitive Touch Screen
Multi-Angle View

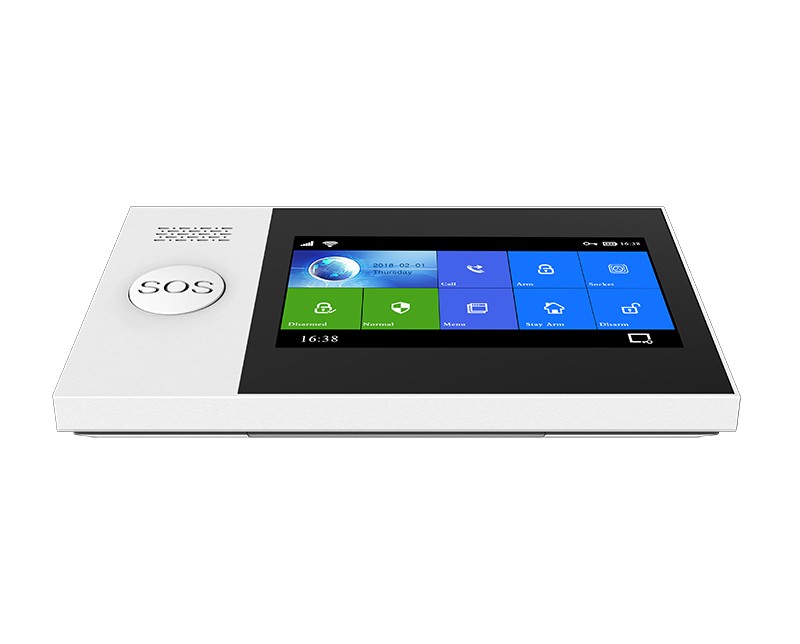

Touch Alarm Panel
PIR Sensor: ZDD-112PIR

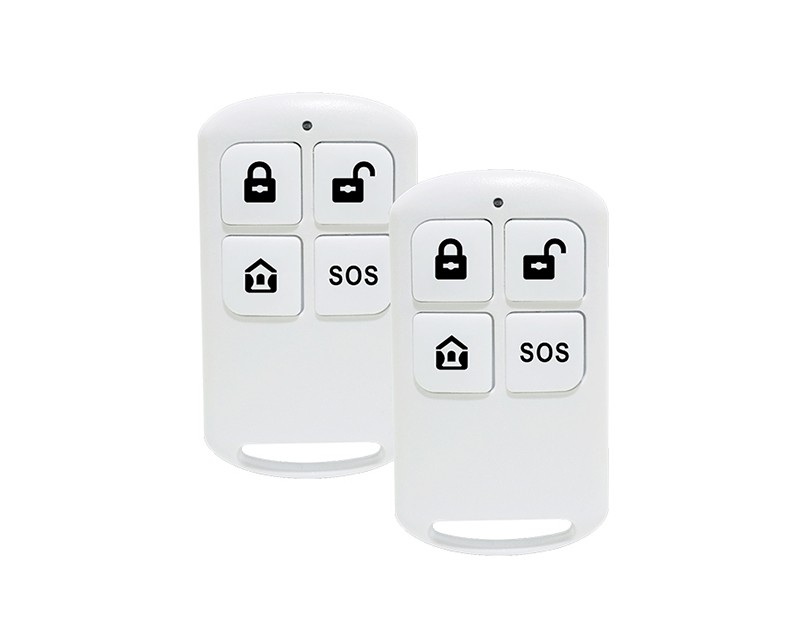

Remote control: ZDRC-121

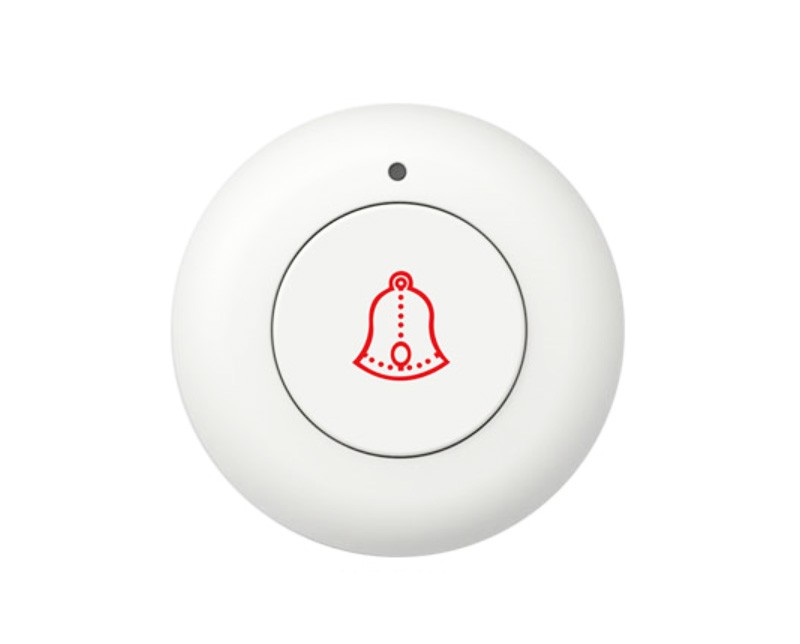

Door Chime: ZDDB-201

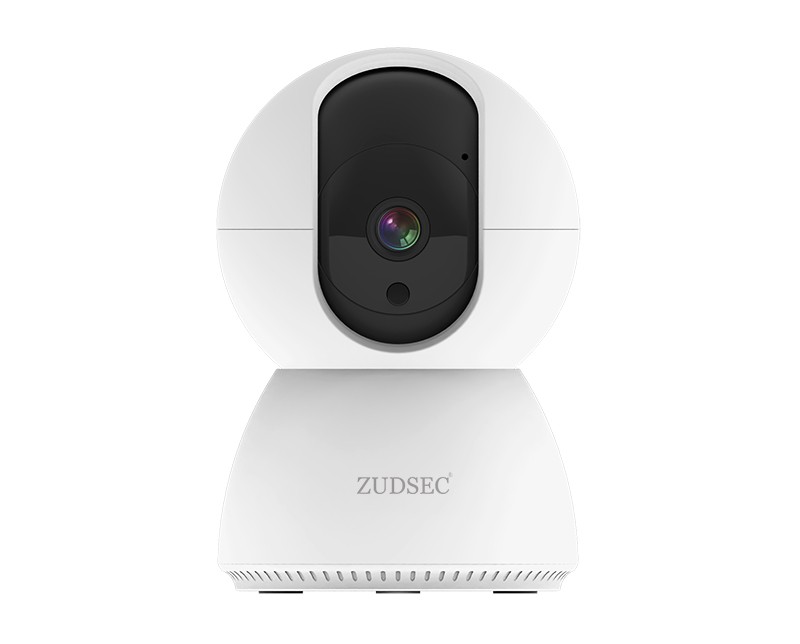

IP Camera: ZDC-Q18IP

GSM/WiFi Smart Home Security System-2G/4G

MODELZDAS-F5

Facebook Twitter InLink instagram Youtube Skype
  • 4.3" TFT Color full touch screen

  • GSM+WiFi Dual Network Technology

  • Two-Way intercom, Operation tone guide

  • Supports 100 Wireless sensors/RFID Card/Remotes+4 Wired zone

  • Support "Ding-dong" door bell function.

  • Sensor low-battery push notification

  • IOS & Android APP control

WiFi/GSM Smart Home Security System: ZUDSEC ZDAS-F5 is a 4.3" TFT Color full touch screen panel which supports GSM+WiFi Dual Network Technology; With SMS & WiFi Push notification, Two-Way intercom, Operation tone guide, RFID tags, Exit & Entry delay, Zone Setting, and supports up to 100 Wireless sensors/RFID Card/Remotes, with 4 Wired zone, Support IOS & Android APP control; Have a built-in siren, big SOS button & rechargeable battery.


ZDAS-F5 WiFi+GSM design enables the sysem to continue working even internet is out of service, system will automatically call, or send SMS & Push notification via APP once an alarm triggered.


- Optional 4G model: ZDAS-F5-4G


GSM/WiFi Smart Home Security System(图1)


- GSM wireless network + WiFi network, double network protection make sure your home more safe.
- 4.3" TFT Full Touch screen panel, RFID tags, Slim panel with large SOS button & Blue back-up light.
- Multi-Language menu/Operation tone guide.
- Support iOS & Android APP control with push notification
- Support 100 wireless zones/ RFID cards / remote controls, with 4 Wired Zones;
- Intelligent door sensor with Open/Close signal;
- Automatically dial 5 phone/SMS alarm numbers when danger;
- Advanced zone attribute, user-friendly zone name, every zone type can be separately programmed.
- Entry delay, exit delay

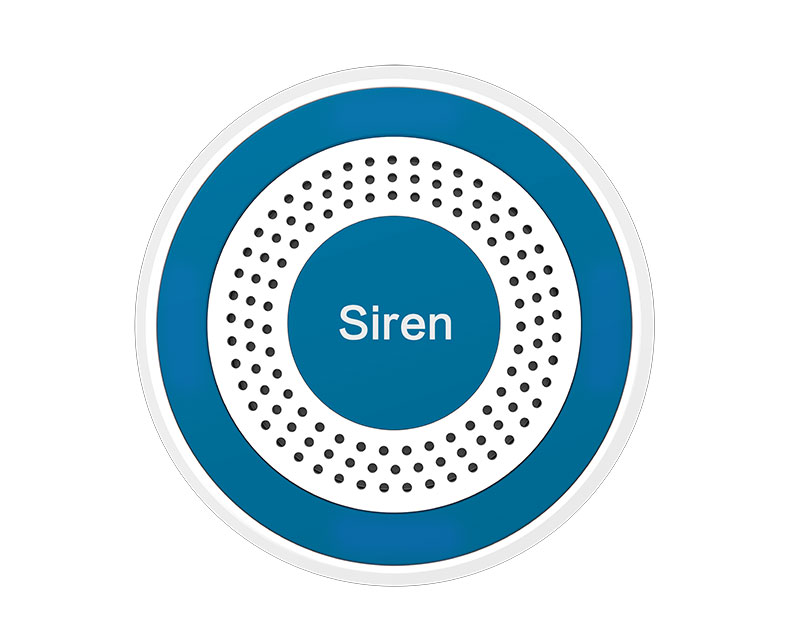

- Support wireless siren.

- Support "Ding-dong" door bell function.

- Linkage work with IP camera

- Built-in Li-lon backup battery can work for 2 hours in case of no electricity supply, it will alert when low power or external power failure/ recover.


GSM/WiFi Smart Home Security System(图1)

GSM/WiFi Smart Home Security System(图2)

GSM/WiFi Smart Home Security System-2G/4G(图3)

GSM/WiFi Smart Home Security System(图4)


  • Alarm communications: Transmitting alarming signal by GSM dialing and Wifi network

  • Support GSM frequency: GSM850/900/1800/1900MHZ (Quad-Band) applicable for universal.

  • Wireless frequency: Available in 315MHz/433MHz

  • Protection zone:  99 wireless zones

  • Working power voltage: Input: AC 110~220V 50-60Hz; Output: DC5V /1A
    Static current: <200mA; Alarm current: <120mA;

  • Built-in Li-ion backup battery: 3.7V,500mA,

  • Coding type: learning code

  • Wireless receiving distance in open place: >200m, indoor: 30~50m, (depend on the surrounding environment and wireless interference)

  • Alarm volume: internal :45dB, external siren: 110~120 dB

  • Working temperature: -20 ~ 55°C ; Working Humidity: 40 ~80%

  • Packing box: 19*18*9.2cm Weight: 1kg / kit


Package contents:

  • Control panel

  • Wireless Door/window sensor

  • PIR detector

  • 2 Remote controllers

  • 2 RFID cards

  • Power adapter

  • User's guide


        Optional Accessories: Wireless Smoke Detector, Wireless socket, Wireless Keypad,

         Photoelectric Beam Sensors, Wireless shutter sensor, Wireless Emergency Button,
         Wireless Repeater, External wired /wireless Siren etc.
