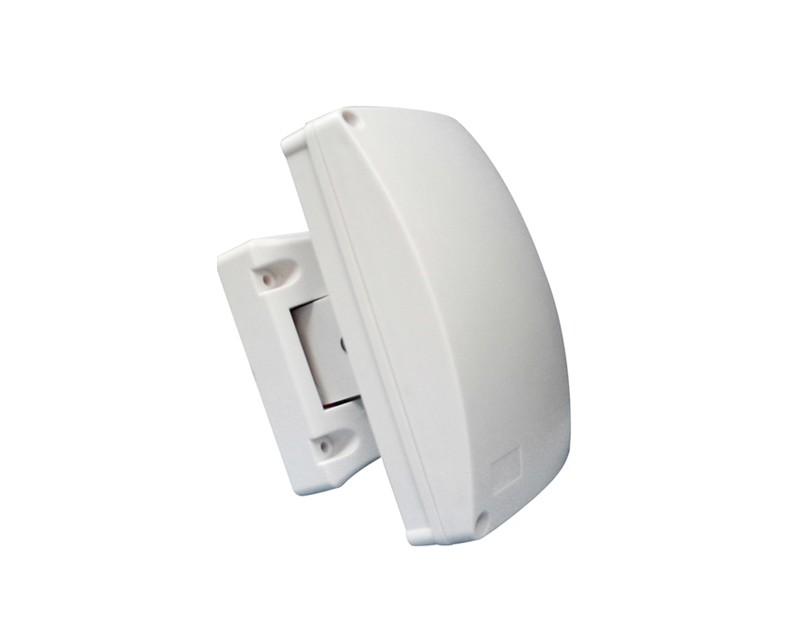

Wireless Curtain PIR Motion Detector: Detecting human's motion and boy's temperature in a fan-sharp area, provides reliable detection with improved false alarm immunity for tough commercial environments. Adopting advanced digital signal processing technology, Compounding of high precision passive infrared detector and logical digital circuit design, feature intelligent power save, auto- temperature compensation, low battery alarm and so on. It emits wireless digital signal to start the control panel for alarm through detecting human being body infrared heat.Wired/ Wireless optional.

- Detecting human's motion and body's temperature in a fan-sharp area
- MCU processing adopted
- Wireless transmitting digital signal
- Low power indication
- Automatic temperature compensation
- Low power consumption, long battery life
- SMT adopted, anti-RFI & anti-EMI
- Adjustable detecting distance; Adjustable time of alarm delay

• Operating voltage: 2*1.5V (2*AA Alkaline battery);; Standby current: less than 35uA
  Alarm current: less than 15mA

• Operating temp. ：-10 to +50°

• Installation mode: wall mounted; Installation height: about 2m

• Detecting distance: 12m; Detecting angle: 15°

• Working frequency: 315MHz/433MHz

• Transmitting distance: more 200m (in the open area)

• Dimension: 107*59*45mm; Packing box: 13.5*7.8*5.3cm; Weight: 150g/pc

Package Contents:

• Standard Exporting Packing Box
