TCP/IP Fingerprint Time Attendance: ZDTA-F04
Multi-Angle View

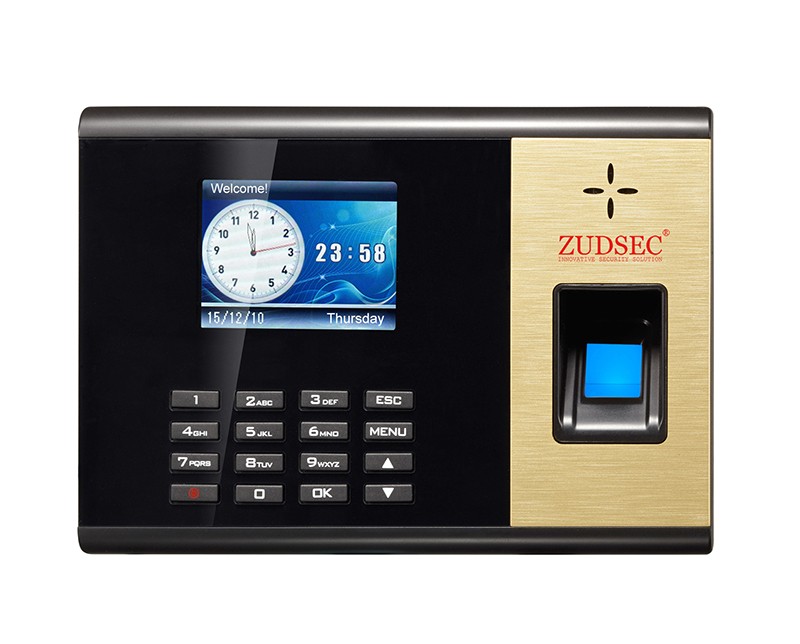

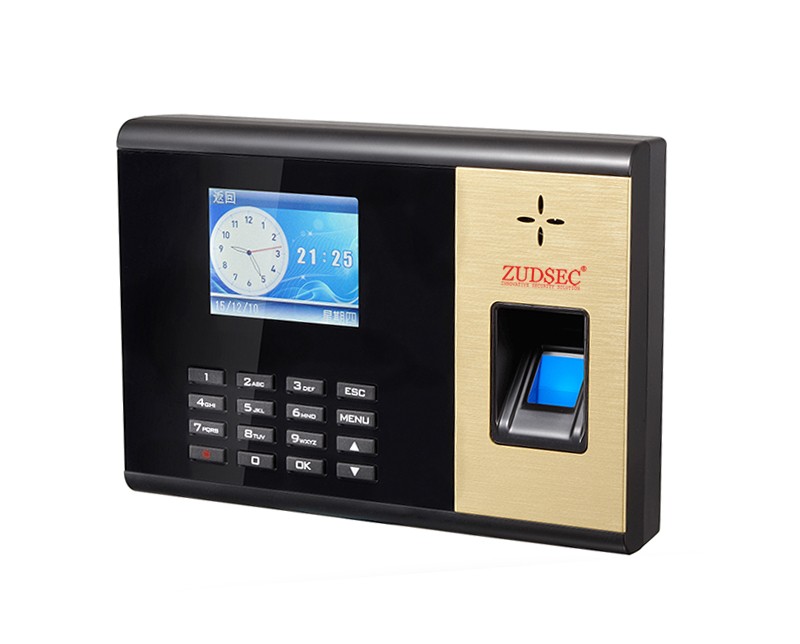

TCP/IP Fingerprint Time Attendance

MODELZDTA-F04

Facebook Twitter InLink instagram Youtube Skype
  • Fingerprint capacity: 1000

  • 2..8 inch TFT-LCD

  • Storage Capacity: 100,000

  • Communication: TCP/IP, USB Memory Disk

  • Fingerprint Sensor Resolution:  500DPI

  • Software OS: XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)

  • Identification Mode: Fingerprint, Password,Card


TCP/IP Fingerprint Time Attendance Terminal: F04 is Multi-Biometric Time Attendance Terminal which combination of  the latest fingerprint and facial recognition technology; Supports 1000 fingerprint templates;  It is equipped with latest hardware platform and algorithm, which provide clients with a brand new UI and user-friendly operating interface, bringing them a smooth using experience. With the advanced face algorithm and multi-biometric verification technology, the terminal's security level of verification is greatly enhanced.

- Fingerprint capacity:  1000
- LCD: 2..8 inch TFT-LCD
- Management Record Capacity:1000
- Storage Capacity: 100000
- Working way: On-line
- Communication: TCIP/IP, USB disk upload/download
- Support T9 input methord,user can set the work time in the device, and the work time can be exported by U-disk as an excel
- Identification Mode:fingerprint, password,fingerprint+card

ModelZDTA-F04
Fingerprint/ Card /Password capacity1000
Storage Capacity100,000
Identification modeFingerprint, card, password
CombinationFP+Card, PIN+Card, FP+IN+Card
Recognition ways1:N,1:1
Recognition speed≤1.0s
False Acceptance Rate≤0.0001%
False Rejection Rate≤0.01%
CommunicationRS485, USB drive/link, TCP/IP
Screen2.8 inches (color display)
Working ModeOffline /Online
Fingerprint SensorOptical sensor
Sound IndicatorBuzzer, Voice
Operating temperature0-50ºC
Operating humidity20%-60%
Idle Current400mA
Working Current500mA
Server connectionAuto PUsh Technology
Wi-Fi ConnectionOptional
Access ControlOptional


Package Contents:

  • Standard Exporting Packing Box
