Video Balun: ZDVB-206HD
Multi-Angle View
Multi-Angle View
Multi-Angle View

Passive HD Video Balun with Pigtail Cable Connector

MODELZDVB-206HD

Facebook Twitter InLink instagram Youtube Skype
  • Effective transfer HD signal and Analog signal

  • HD-AHD/TVI/CVI/CVBS

  • With pigtail cable conector

  • AHD/HDCVI: 720P/270M, 1080P/120M

  • HDTVI/C_VBS: 720P/300M, 1080P/200M

  • Interference device, Surge protect UTP video balun

1CH Passive HD Passive Video Balun:   Supports AHD/ HDCVI / HDTVI /CVBS video format compatible etc, Resolution support 720P /1080P / 3MP /4MP /5MP/8MP.

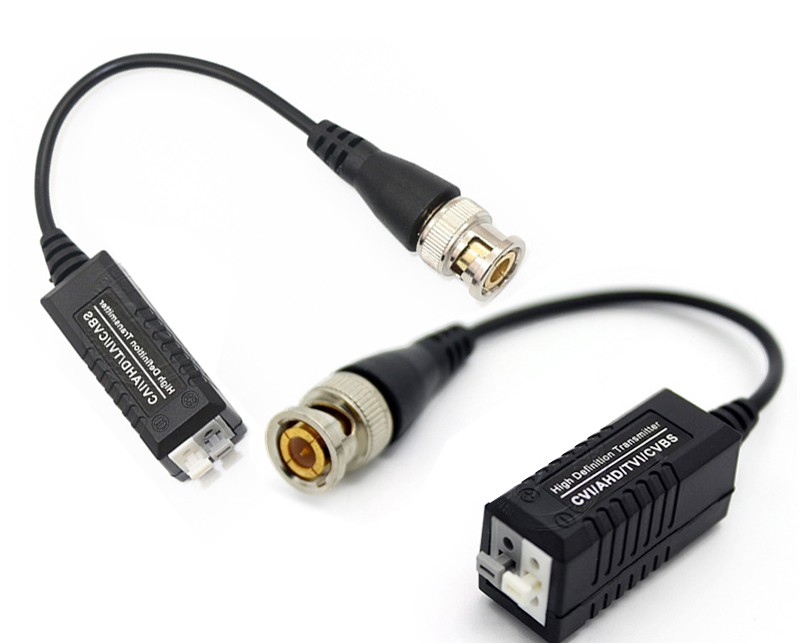

                       1Ch Passive Video Balun with pigtail cable conector(图1)


- Effective transfer HD signal and Analog signal
- HD-AHD/TVI/CVI/CVBS
- AHD/HDCVI: 720P/270M, 1080P/120M
- HDTVI/CVBS: 720P/300M, 1080P/200M
- interference device, Surge protect UTP video balun


ModelZDVB-206HD
Transmission distanceHD TVI: 720P:600m,1080P:450m,3MP:350m,4MP/5MP:300m
HD CVI: 720P:600m,1080P:450m,3MP:300m,4MP/5MP:280m
HD AHD: 720P:600m,1080P:450m,3MP:350m,4MP/5MP:300m
CVBS: 600M
Catagory typeUPT CAT5 / 5E / 6
MaterialABS Plastic
ImpedanceBNC male: 75, UPT Cable: 100
FormatsAHD/HDTVI/HDCVI/CVBS
Working ValtageDC12V
Signal Bandwidth6 MHz
Category Type5 or better

*Packing size: 55*39*27.5CM;   Weight: 12Kg/200pcs



Package Contents:

  • Standard Exporting Packing Box
