Video Balun: ZDVB-6000HD-C
Multi-Angle View
Multi-Angle View

Passive HD Video Balun Without Wire-Stripping

MODELZDVB-6000HD-C

Facebook Twitter InLink instagram Youtube Skype
  • Effective transfer HD signal and Analog signal

  • HD-AHD/TVI/CVI/CVBS

  • Without Wire-Stripping

  • AHD/HDCVI: 720P/270M, 1080P/120M

  • HDTVI/C_VBS: 720P/300M, 1080P/200M

  • Interference device, Surge protect UTP video balun

1CH Passive HD Passive Video Balun:   Without Wire stripping white HD video balun for CCTV Camera: Built-in surge protection, support AHD/ HDCVI / HDTVI /CVBS, Anti-interference 2000V lightning protection passive design, no additional power supply required, Transmission distance up to 600m, 5MP can transmit 300m.

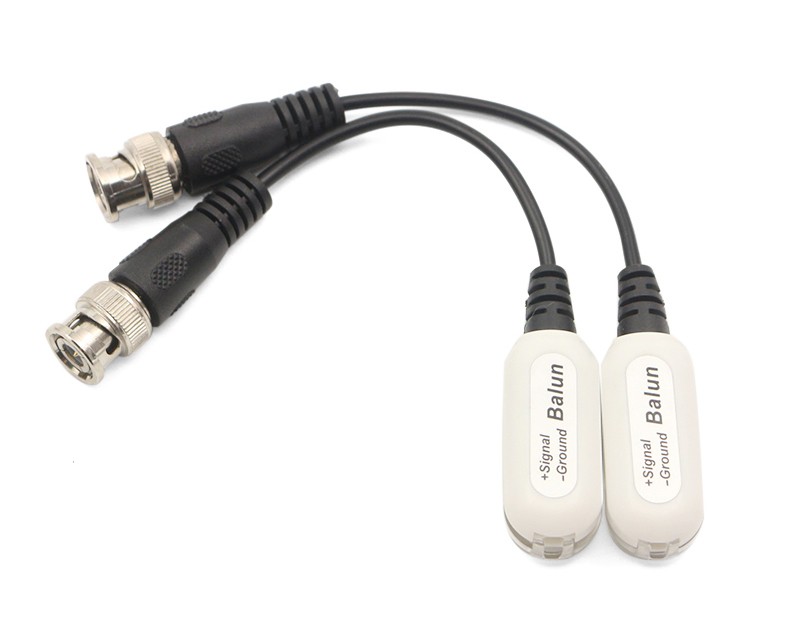

                      Passive HD Video Balun Without Wire-Stripping(图1)



- Without Wire-Stripping

- Support: HDCVI/AHD/HDTVI/CVBS
- HDTVI/CVBS: 720P/300M,1080P/120M-200M
- AHD/HDCVI: 720P/200M; 1080P/120M
- HDTVI: 720P/350M; 1080P/200M
- interference device, Surge protect UTP video balun
- Interference rejection / Noise filter / Surge protect (600W)

ModleZDVB-6000HD-C
Video singleHD-AVI/TVI/AHD/CVBS

Transmission signal

For HD-AHD 720P/600M, 1080P / 450M,3MP/ 4MP/5MP: 300M

For HD- CVI 720P / 600M, 1080P/ 450M,3MP/ 4MP/5MP: 300M

For HD- TVI  720P /500M, 1080P / 380M,3MP/ 4MP/5MP: 300M

Frequency responseDC to 8MHz
Attenuation0.5dB typ
Impedance BNC:75ohms
Humidity0 to 95%
Category Type Cat5e/6 suggested
Dimension80mm*17mm*15mm
Material ABS Plastic


Package Contents:

  • Standard Exporting Packing Box
