TCP/IP Fingerprint Time Attendance: ZDTA-200T
Multi-Angle View

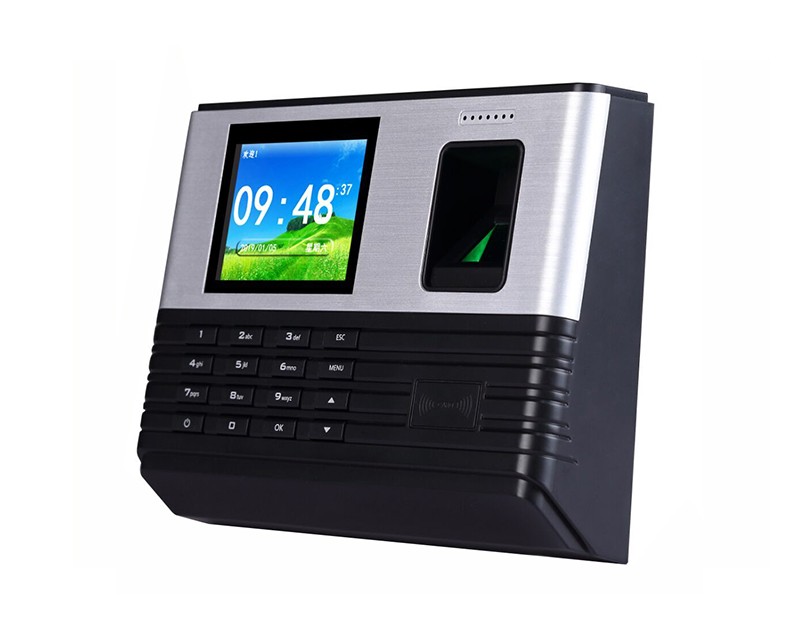

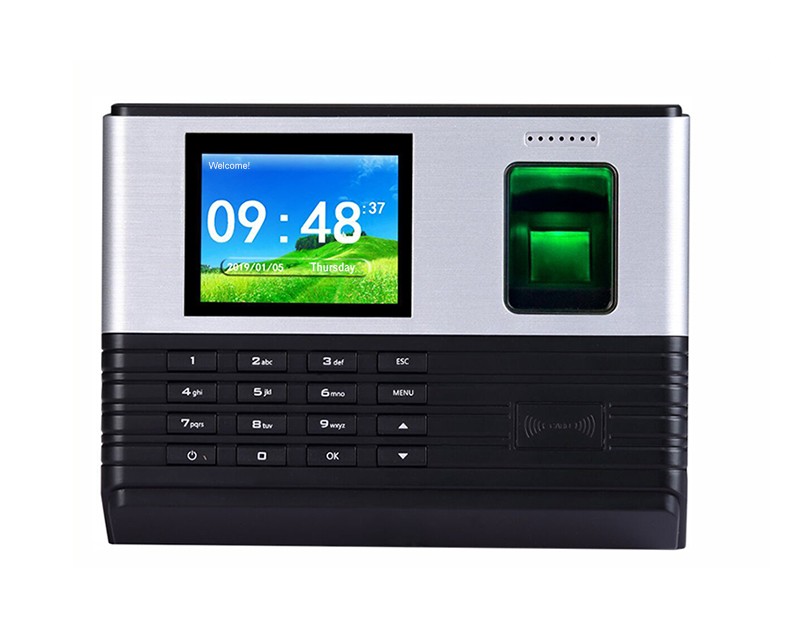

TCP/IP Fingerprint Time Attendance

MODELZDTA-200T

Facebook Twitter InLink instagram Youtube Skype
  • User Capacity:5,000 Fingerprint / Card/ password

  • 2..8 inch TFT-LCD

  • Storage Capacity: 100,000

  • ommunication: TCP/IP, USB Memory Disk

  • Fingerprint Sensor Resolution:  500DPI

  • Software OS: XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)

  • Identification Mode: Fingerprint, Password,Card


TCP /IP Fingerprint Time Attendance: 2.8 inch LCD display, Support USB & TCP/IP communication; 5000 Fingerprint users; 100000 Storage records; Support Attendance record Real-time Monitoring. ZDTA-200T is a professional TCP /IP Fingerprint Time Attendance, with the most advanced fingerprint arithmetic in the world, automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition, the identification time is less than 1 second..

- Fingerprint capacity: 5000; Storage Capacity:100,000
- Communication: TCP/IP, USB Memory Disk
  * Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.
  * TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & sharing freely
- Identification Mode: Fingerprint, Password, ID Card
  * The device is built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination, access control is more flexible and secure.
- Supports 11 & 18 digits for user ID registration, user also could enroll mobile number for ID numbers.
- Authentication modes are 1:1 and 1:N, user can register ten fingers, max fingerprint capacity is 1,000 enrollment and 100,000 records.
- Fingerprint Sensor Resolution:  500DPI (Optical sensor)
- Software OS: XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)
- Support English, Germany, Spanish ect different languages

Model ZDTA-200T
 LCD Screen  2.8 inch TFT (320*240) Color Screen
 Fingerprint Sensor Resolution 500DPI (Optical sensor)
 CPU ARM926EJ CPU, Running Frequency: 200MHZ
 Communication TCP/IP, USB Memory Disk
 User Capacity5,000
 Fingerprint/Card/Password Capacity5,000
 Records Capacity100,000
 Software OS XP/Win2003/Vista/Win7/Win8 (32bit /   64bit)
 Identification Time < 1 S
 Authentication Method Fingerprint/ RFID Card (125Khz, EM4100),   Optional for MIFARE card
 Language Chinese / English  (could customize   others)
 Bell Built-in timing bell(Scheduled-bell),   Support buit-in doorbell
 Power DC6V/1A
 FRR <1%
 FAR <0.00001%
 Operating Mode Off-line/On-line
 Authentication Mode 1:1, 1:N
 Dimension 172(L)*132(W)*41(H)mm
 Operating environment Operating Temp: 0C-50C, Humidity: 80%


Package Contents:

  • Standard Exporting Packing Box
